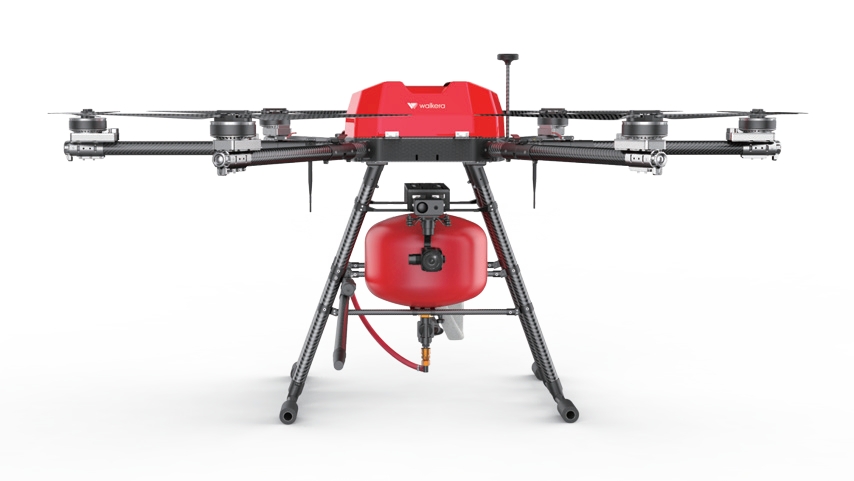

The WK-1800 Heavy Lift Firefighting Drone is a professional six-rotor UAV engineered for firefighting agencies, emergency response teams, industrial safety operations, and disaster management. Designed to transport specialized firefighting equipment while maintaining stable flight performance, it combines heavy-lift capability, intelligent flight control, and modular payload integration into a single aerial platform.
With a 20 kg payload capacity, up to 50 minutes of endurance, and support for thermal imaging, laser targeting, water hose systems, and fire extinguishing payloads, the WK-1800 enables first responders to reach hazardous locations faster while reducing operational risks.
Item No :
WK-1800| Parameter | Specification |
|---|---|
| Maximum Takeoff Weight | 56.1 kg |
| Maximum Payload | 20 kg |
| Wheelbase | 1900 mm |
| Maximum Flight Time | Up to 50 min |
| Maximum Horizontal Speed | 15 m/s |
| Maximum Climb Speed | 5 m/s |
| Maximum Descent Speed | 3 m/s |
| Maximum Pitch Angle | 35° |
| Maximum Wind Resistance | 12 m/s |
| Maximum Operating Altitude | 5000 m |
| GPS Hover Accuracy | ±0.5 m Vertical / Horizontal |
| Protection Rating | IP43 |
| Unfolded Dimensions | 2070 × 1800 × 910 mm |
| Folded Dimensions | 1100 × 950 × 910 mm |
The WK-1800 is designed for continuous operation in demanding outdoor environments. Its enclosed modular airframe provides resistance against water spray, dust, and corrosion while protecting critical electronic components.
The rugged structure allows reliable operation in:
The optimized six-motor propulsion system delivers strong lifting performance while maintaining flight stability under heavy payloads.
Compared with conventional UAVs, the six-axis configuration offers:
The platform is suitable for carrying firefighting modules, emergency supplies, inspection equipment, and rescue devices.

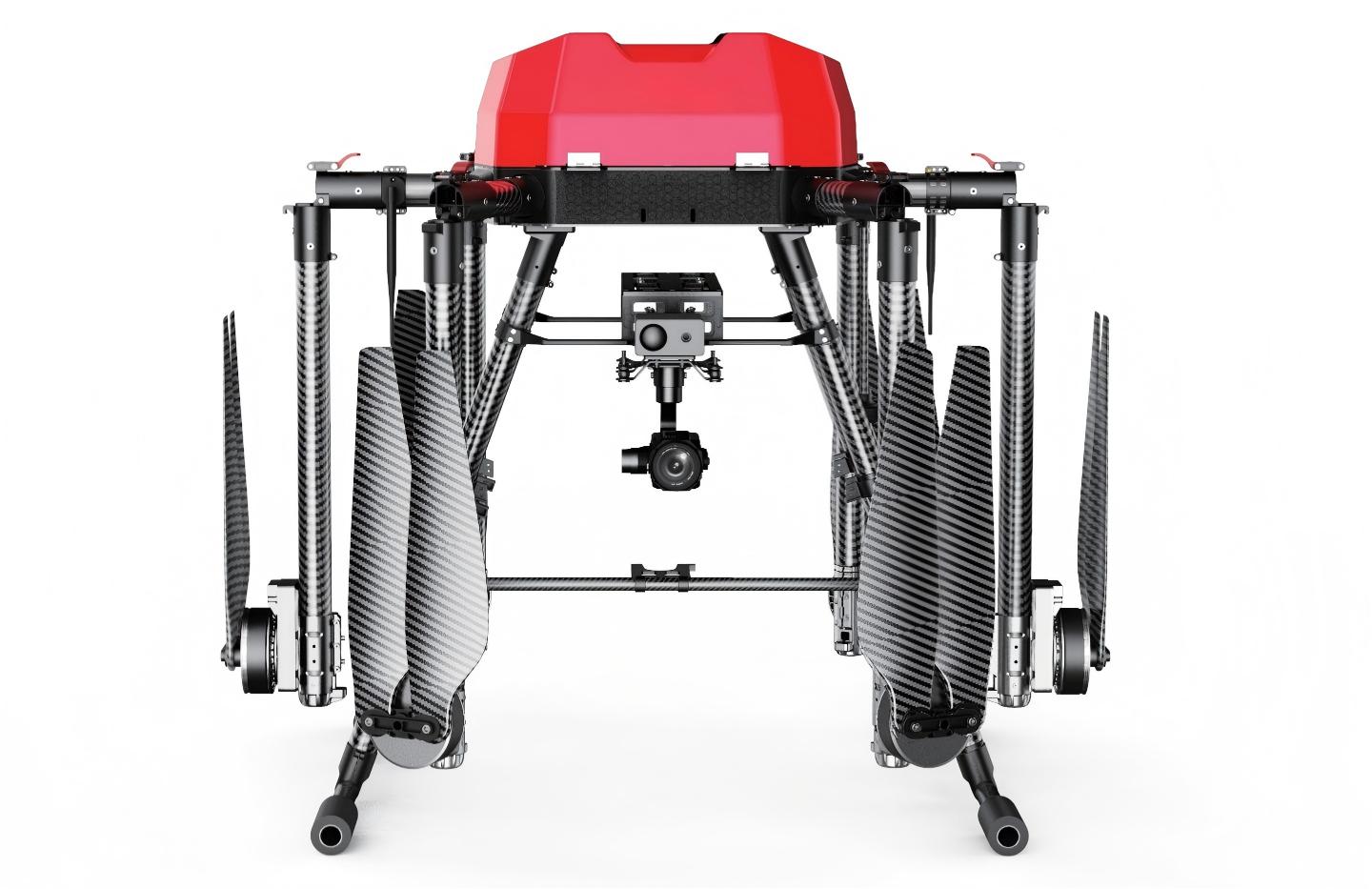

The innovative vertical folding mechanism allows the aircraft to collapse into a compact transport size without complicated disassembly.
Benefits include:
The folded size makes transportation to remote deployment sites significantly more efficient.
The drone uses a 66,000 mAh LiHV intelligent battery (45.6V / 3009.6Wh), providing extended mission duration for demanding operations.
Integrated battery management functions include:
Maximum flight endurance reaches 50 minutes under standard operating conditions.

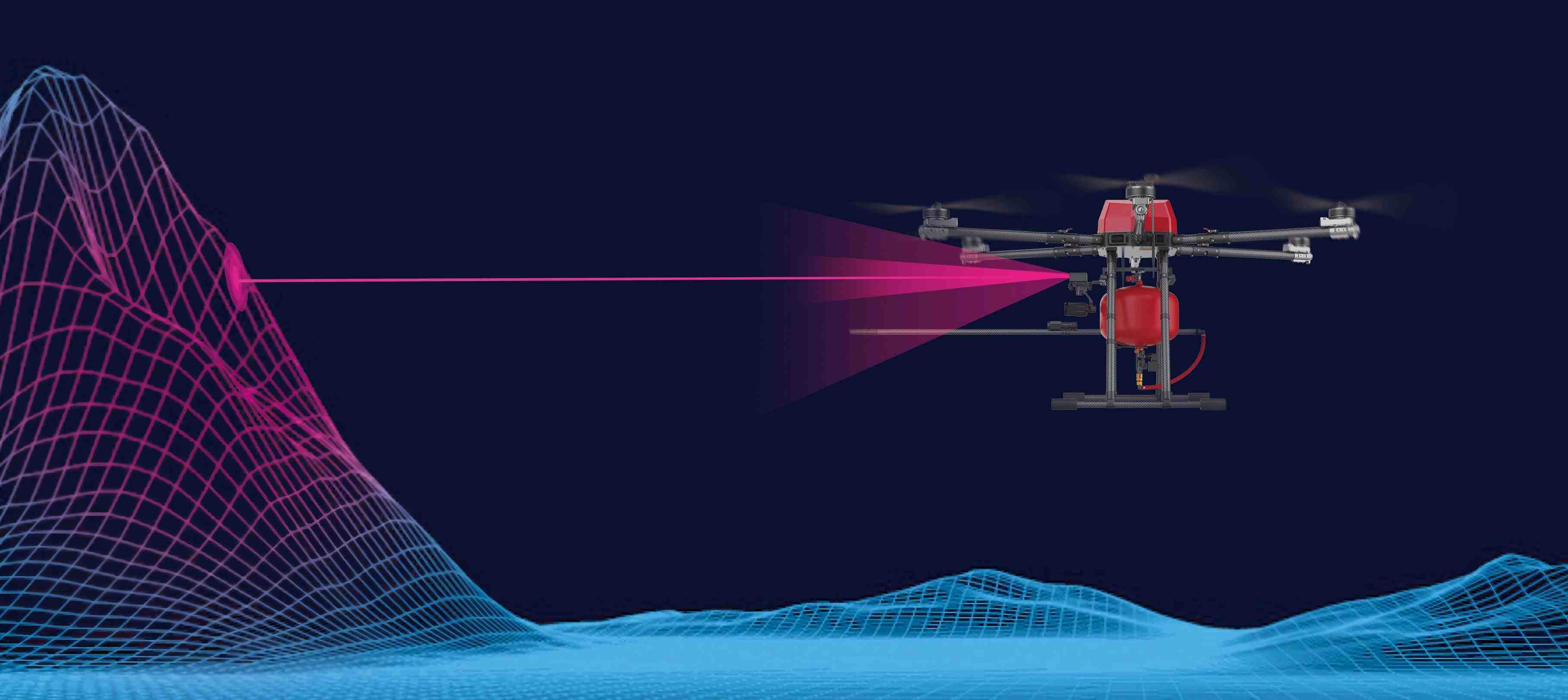

For safer low-altitude flight, the WK-1800 integrates a high-precision LiDAR sensing system capable of detecting obstacles up to 100 meters away.
The system automatically identifies buildings, trees, towers, power lines, and terrain features before initiating collision avoidance or emergency braking.
Advantages include:

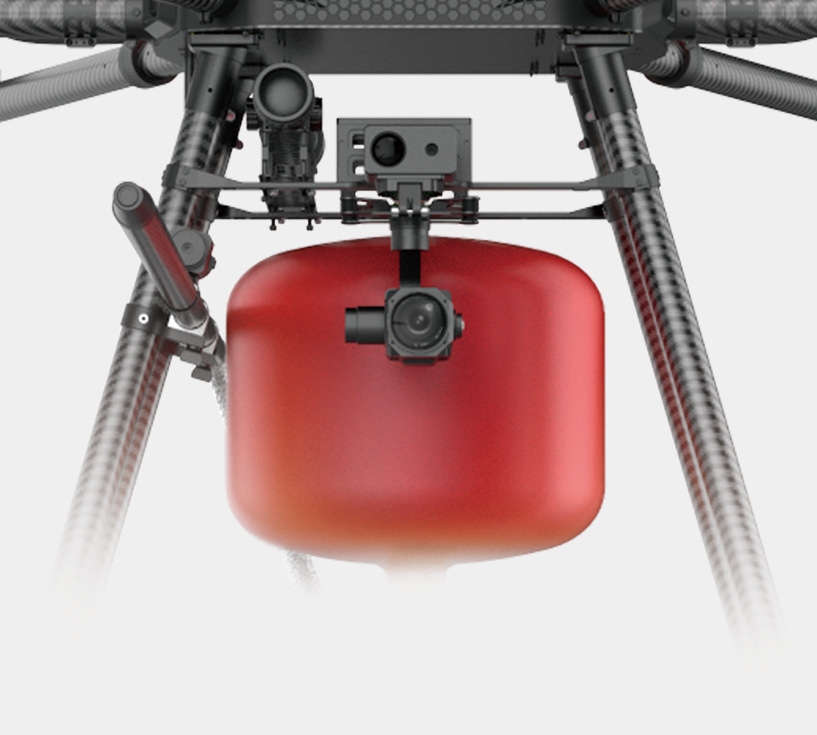

Every WK-1800 comes equipped with a 30× optical zoom 4K camera, allowing operators to inspect incidents from a safe distance while maintaining image clarity.
Applications include:
Optional imaging payloads include:
For operations conducted in smoke, darkness, or low visibility, the WK-1800 integrates a night targeting system combining a high-frame-rate camera with precision aiming assistance.
The ground control interface displays an aiming reticle that helps operators accurately position firefighting payloads during aerial suppression missions.
Designed for rapid aerial deployment of extinguishing agents.
Specifications:
Ideal for:
The aerial launch module enables precision delivery of dry powder fire suppression projectiles.
Features include:
Suitable for:
The water hose attachment connects directly to municipal hydrants or fire trucks to create a continuous aerial firefighting system.
Key advantages:
Designed specifically for wildfire response, this lightweight suppression module delivers extinguishing agents across a wide coverage area.
Highlights:
Suitable for:
The modular platform supports rapid installation of specialized mission equipment.
| Payload | Typical Applications |
|---|---|
| Dual Thermal Imaging Camera | Fire detection, search & rescue, security patrol |
| Laser Night Vision Camera | Low-light surveillance |
| 120 MP Mapping Camera | Photogrammetry and 3D mapping |
| Lifebuoy Delivery System | Water rescue operations |
| Loudspeaker System | Public announcements and evacuation |
| Searchlight | Night rescue and emergency lighting |
| Banner System | Public safety campaigns and demonstrations |
The WKRC-H12 professional controller provides a dedicated command platform for industrial UAV operations.
Features include:
The accompanying mission software supports:
The WK-1800 supports a broad range of aerial missions beyond firefighting.
| Mission | Description |
|---|---|
| High-Rise Firefighting | Deliver suppression payloads to upper floors |
| Forest Fire Control | Deploy extinguishing bombs over wildfire zones |
| Industrial Emergency Response | Chemical plant and factory incident support |
| Search and Rescue | Locate missing persons using thermal imaging |
| Disaster Assessment | Rapid aerial damage surveys |
| Infrastructure Inspection | Power lines, pipelines, towers and bridges |
| Public Safety | Security patrol and emergency monitoring |
Professional service is available throughout the equipment lifecycle.
The aircraft supports payloads up to 20 kg, making it suitable for firefighting equipment, thermal cameras, rescue devices, loudspeakers, mapping sensors, and industrial inspection systems.
Using the standard intelligent battery, maximum flight endurance reaches 50 minutes, depending on payload weight and operating conditions.
Yes. The enclosed airframe features IP43 protection against dust and water ingress, making it suitable for demanding field environments.
Users can configure the aircraft with dry powder suppression modules, aerial fire extinguishing bomb launchers, high-pressure water hose systems, or forest fire suppression devices based on operational requirements.
Yes. Optional thermal imaging cameras, infrared sensors, low-light cameras, searchlights, and laser-assisted targeting systems enable effective operation after dark or in smoke-filled environments.
