PIA-W-5038 Series Parachute & Airdrop Webbing

Product Overview

The PIA-W-5038 Series comprises specialized binding, reinforcement, and support tapes, designed for securing, reinforcing, and finishing parachute components. Made from high-quality nylon 6.6 via Class 1 shuttle loom, these tapes offer precise strength and flexibility for detailed parachute assembly.

Product Details by Type

·

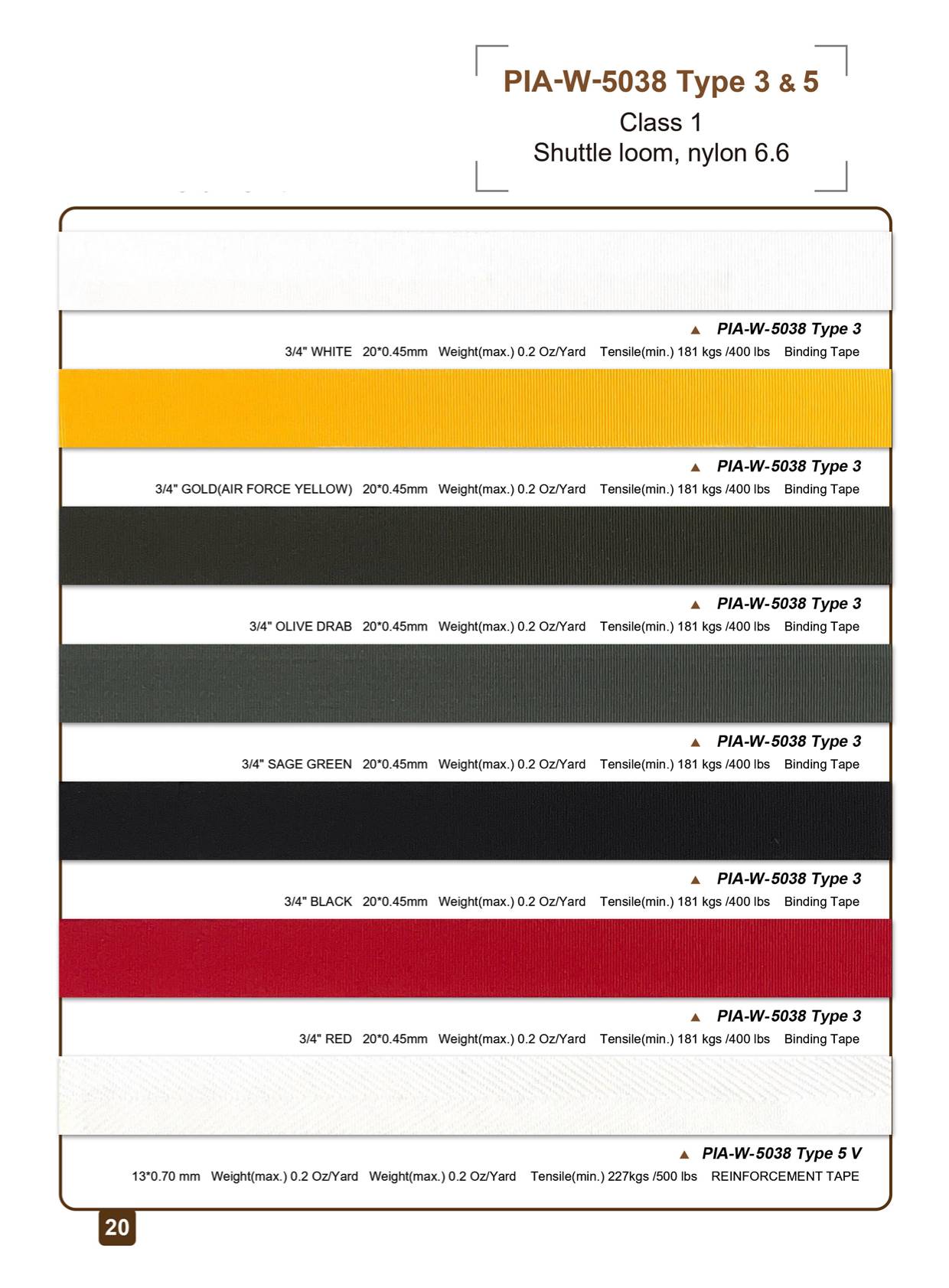

PIA-W-5038 Type 3

·

· Specifications (varies by size):

· 1" width: 25" length, 0.45mm thickness; max weight 0.3 Oz/Yard; min tensile strength 283 kgs/525 lbs (Binding Tape).

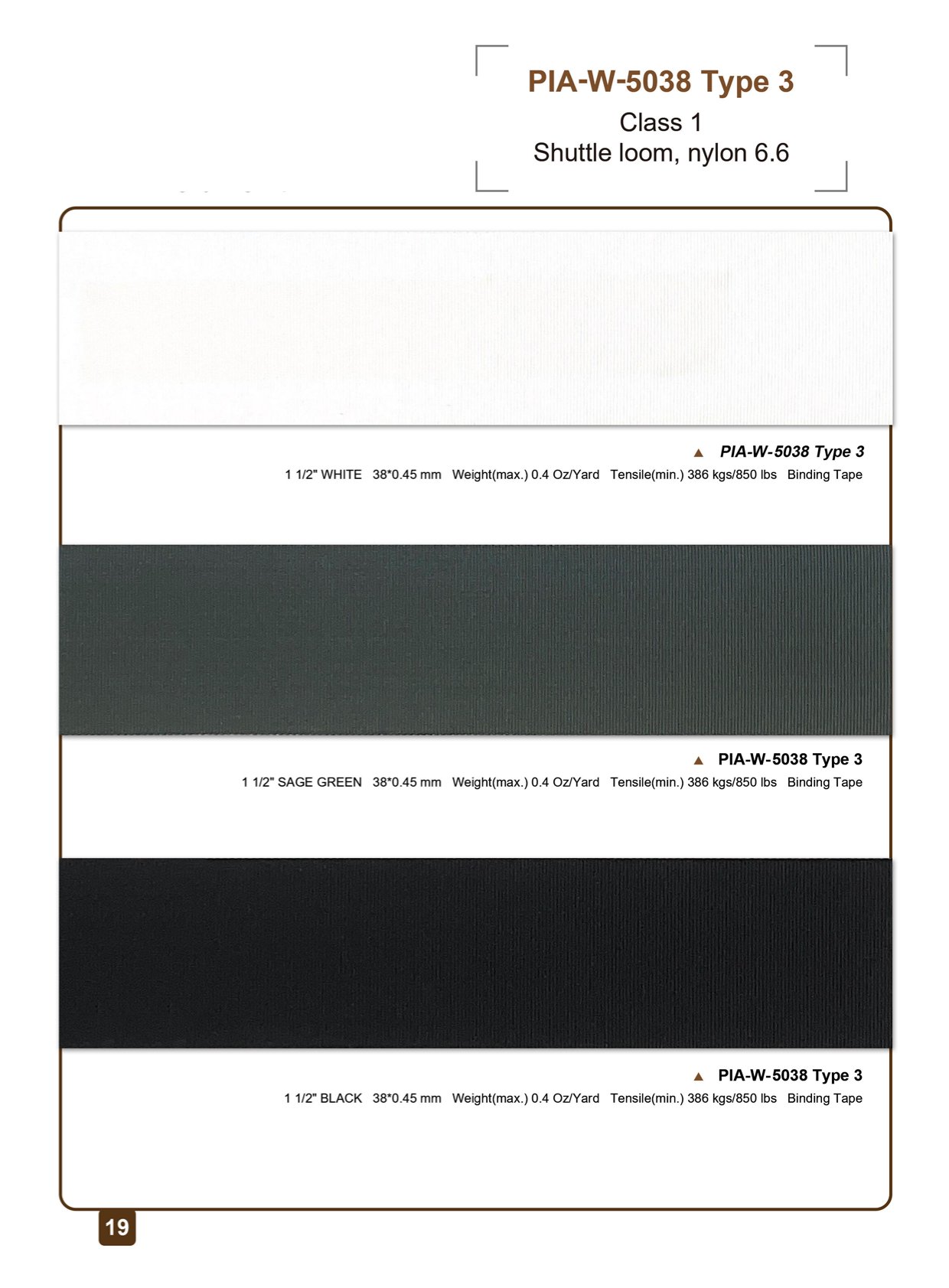

· 1 1/2" width: 38" length, 0.45mm thickness; max weight 0.4 Oz/Yard; min tensile strength 386 kgs/850 lbs (Binding Tape).

· 3/4" width: 20" length, 0.45mm thickness; max weight 0.2 Oz/Yard; min tensile strength 181 kgs/400 lbs (Binding Tape).

· 3/8" width: 10" length, 0.35mm thickness; max weight 0.12 Oz/Yard; min tensile strength 91 kgs/200 lbs (Lightweight Support).

· Colors: White, Yellow, Olive Drab, Sage Green, Black, Red, Gold (Air Force Yellow).

· Key Use: Parachute seam binding, edge reinforcement, lightweight component securing.

·

PIA-W-5038 Type 5 V

·

· Specifications: 13" length, 0.70mm thickness; max weight 0.2 Oz/Yard; min tensile strength 227 kgs/500 lbs (Reinforcement Tape).

· Key Use: Critical point reinforcement in parachute canopies and lines.

·

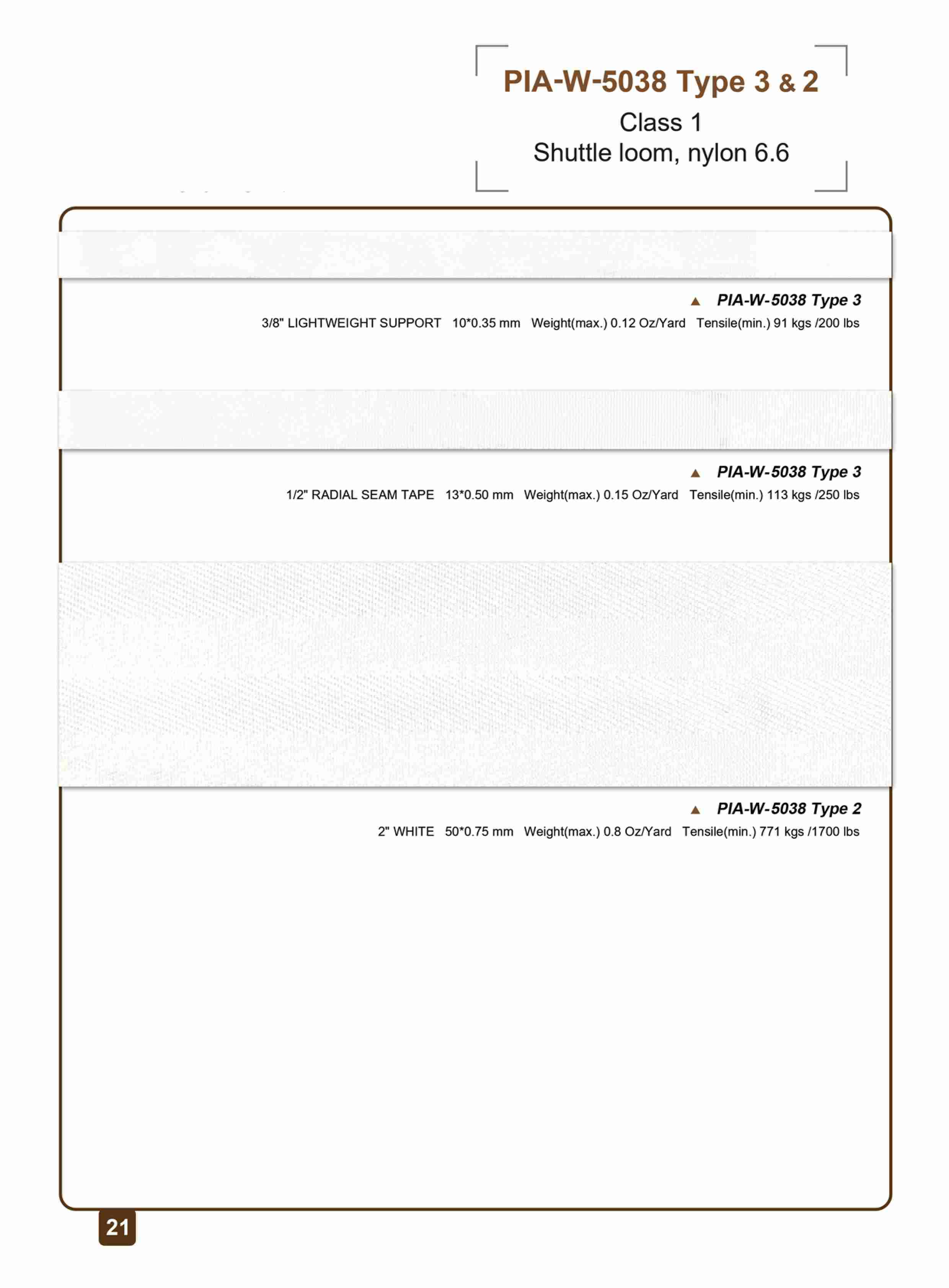

PIA-W-5038 Type 2

·

· Specifications: 2" width, 50" length, 0.75mm thickness; max weight 0.8 Oz/Yard; min tensile strength 771 kgs/1700 lbs.

· Color: White.

· Key Use: Heavy-duty binding for large parachute sections.

·

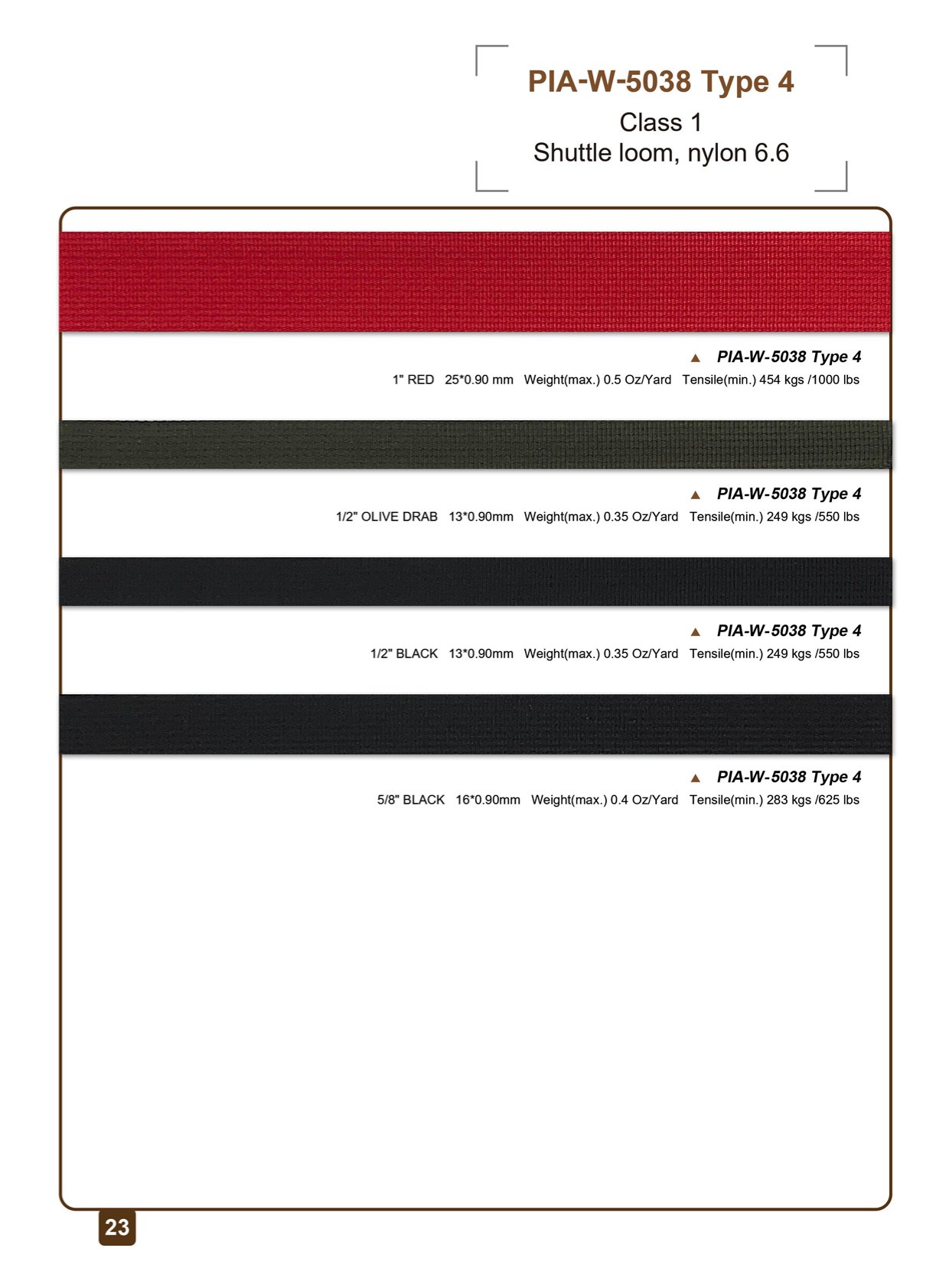

PIA-W-5038 Type 4

·

· Specifications (varies by size):

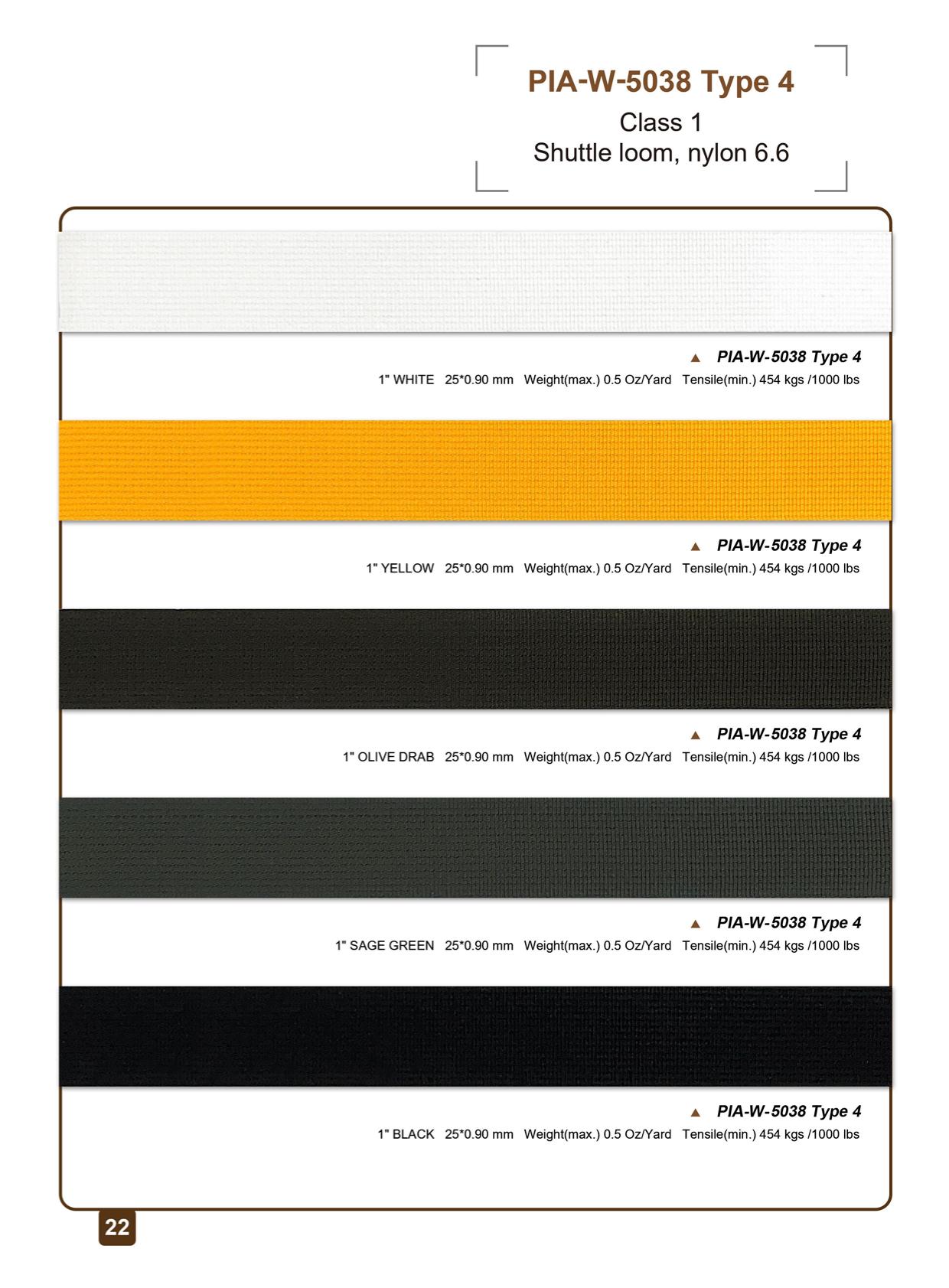

· 1" width: 25" length, 0.90mm thickness; max weight 0.5 Oz/Yard; min tensile strength 454 kgs/1000 lbs.

· 1/2" width: 13" length, 0.90mm thickness; max weight 0.35 Oz/Yard; min tensile strength 249 kgs/550 lbs.

· 5/8" width: 16" length, 0.90mm thickness; max weight 0.4 Oz/Yard; min tensile strength 283 kgs/625 lbs.

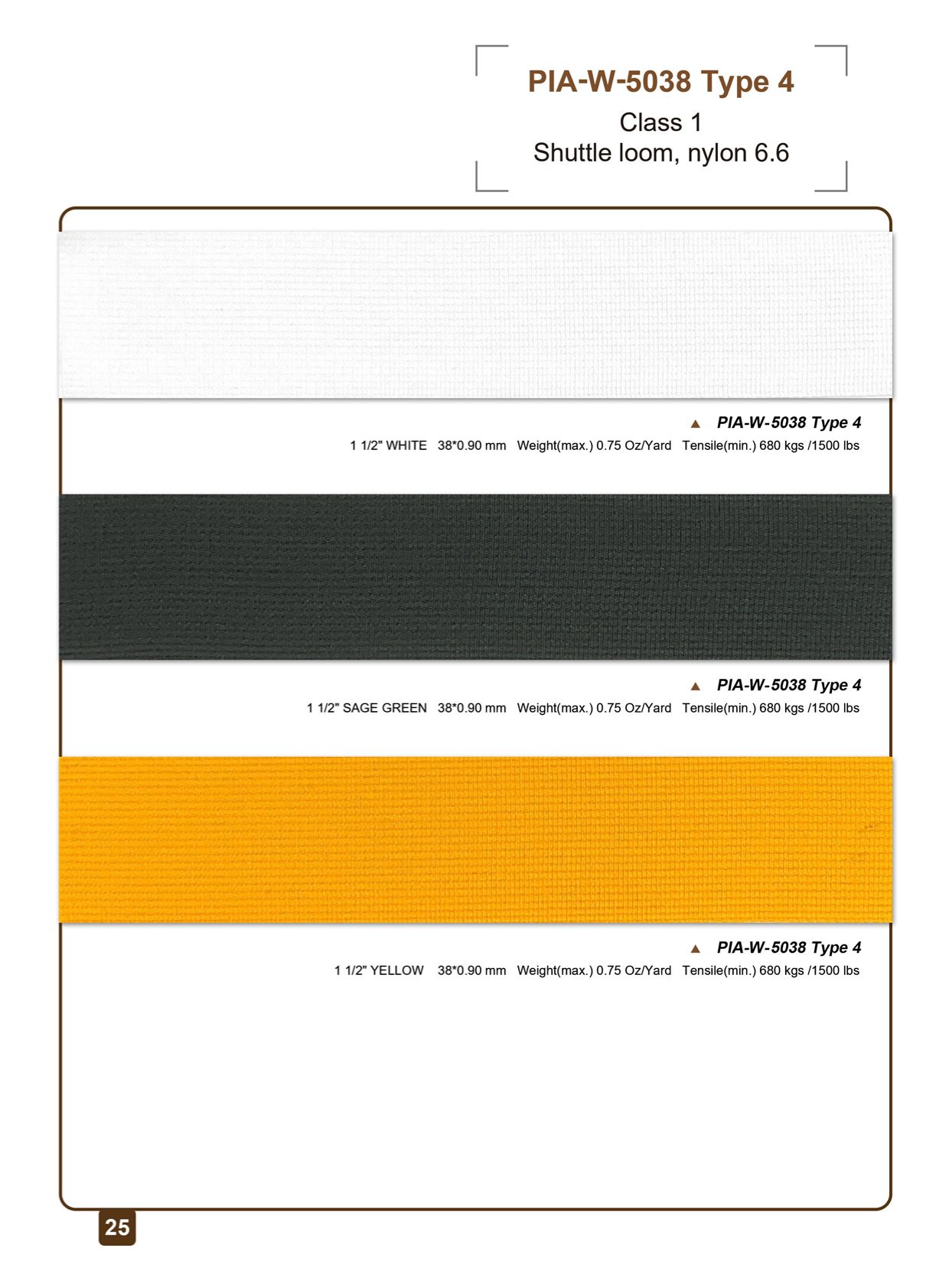

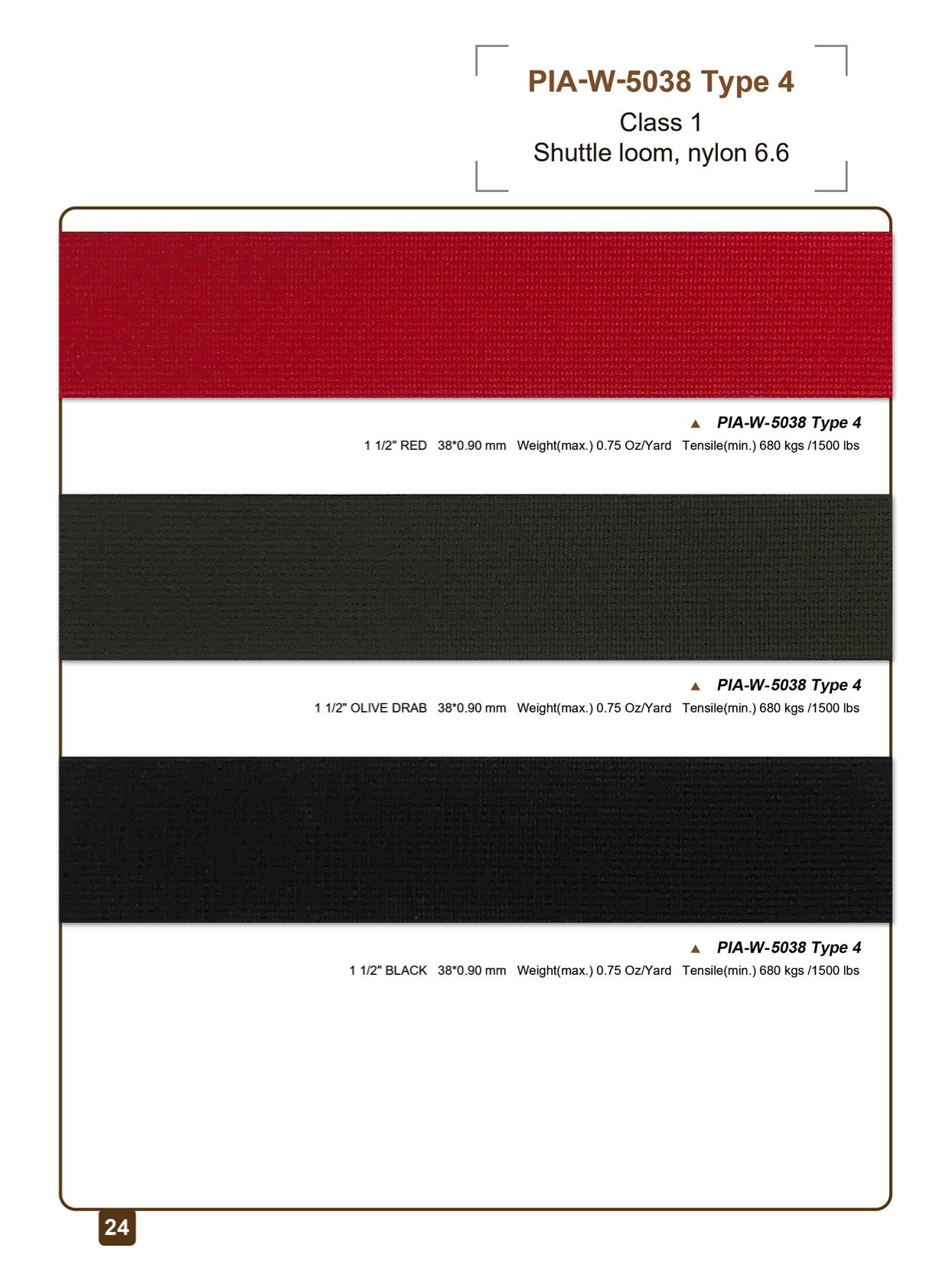

· 1 1/2" width: 38" length, 0.90mm thickness; max weight 0.75 Oz/Yard; min tensile strength 680 kgs/1500 lbs.

· Colors: White, Yellow, Olive Drab, Sage Green, Black, Red.

· Key Use: Medium-strength binding, gear attachment points, structural reinforcement.
