1Security X-ray machine
Description:

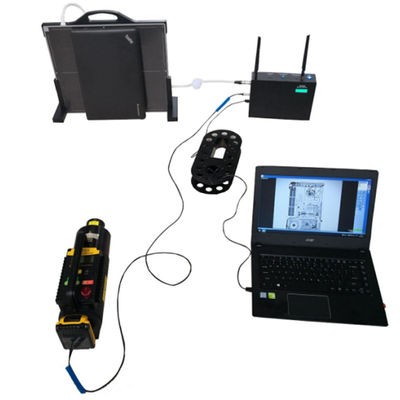

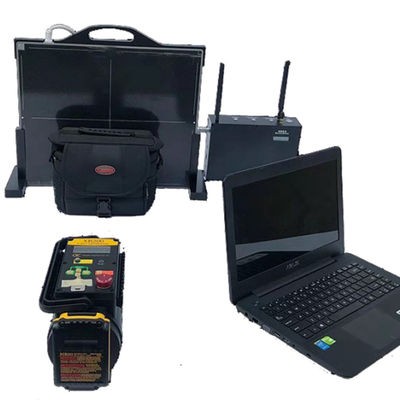

This device is a light weight ,portable,battery powered x-ray scanning system designed in co-operation with the first responder and EOD teams to meet the need of the field operative. It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time.
| A | Technical Specification of the imaging plate | |
| 1 | Detector Type | Amorphous Silicon with TFT |
| 2 | Detector Area | 433mm x 354mm (Standard) |
| 3 | Detector Thickness | 15mm |
| 4 | Pixel pitch | 154 μm |
| 5 | Pixel array | 2816X2304 pixels |
| 6 | Pixel Depth | 16 bits |
| 7 | Limiting Resolution | 3.4 lp/mm |
| 8 | Image Acquisition Time | 4-5s |
| 9 | Weight | 6.4kg with battery |
| 10 | Power supply | 220V AC/50Hz |
| 11 | Communication | Wired: 50 meters fiber on a roller, TCP/IP Ethernet |
| Wireless: 5G Wi-Fi , no less than 70m | ||
| 12 | Operating Temperature | -10℃+55℃ |
| Technical Specification-x-ray Generator | ||
| 1 | Operating Mode | Pulse, it launches 4000 pulses each time when charged fully |
| 3 | Working hours | More than 5 hours |
| 4 | Voltage | 150kV |
| 5 | Penetration | 50mm Aluminium Plate |
| 6 | Weight | 5Kg with battery |
| Technical Specification – Imaging Station (PC) | ||
| 1 | Type | Laptop computer |
| 2 | Processor | Intel Core i5 processor |
| 3 | Display | 13 or 14” Full High Definition LED Display |
| 4 | Memory | 8GB |
| 5 | Hard Drive | No less than 500GB |
| 6 | Operating system | English MS Windows 10 |
| 7 | Software |
Automatic Optimization, Invert, Revert, Pseudo color image, Rotate, Flip Horizontal, Flip Vertical, Zoom, Deep Focus, Polygon On screen measurement, Merge, Save, 3D image |
