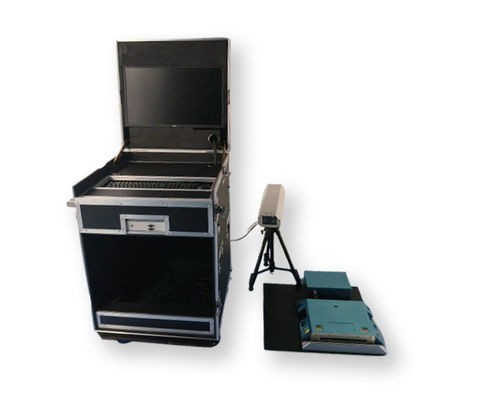

Mobile Wired / Wireless Dual Purpose Vehicle Bottom Scanning System

Product Usage

The wireless bottom scanning system has a high level of protection design and can work normally in harsh environments. This product is suitable for inspecting car chassis in temporary security checkpoints such as airports, public security inspection stations, docks, customs, prisons, military restricted areas, and large conferences.

Or used to explore the following items:

Explosives and bombs: including but not limited to components of explosives such as bombs, homemade explosive devices (IEDs), detonators, pyrotechnic devices, leads, batteries, etc.
Weapons and ammunition: including pistols, rifles, bullets, grenades, and other weapons and their accessories.
Illegal smuggled goods: drugs, precious wildlife products, illegal electronic products, tobacco products, etc. Illegal wireless devices: including illegal wireless transmitters, receivers, and other wireless communication equipment.
Illegal immigration: used to prevent unauthorized individuals from hiding under the chassis of vehicles.
Other prohibited items: such as controlled knives, sparks, flammable and explosive liquids, and solids.

Operating Environment

Working environment temperature: -40 ℃~+85 ℃
Working environment humidity: 0-95% (without condensation)

Technical Parameter

Trigger scanning method, with free switching between wired and wireless
Intelligent power management system, displaying real-time power status;
The wireless module adopts dual battery and dual voltage technology, serving as backup for each other;
Vehicle bottom image resolution: ≥ 9000 * 19000 pixels, vehicle bottom image pixels>95 million
Local magnification of the car bottom image: 1, 2, 4, 8, 16 times
Vehicle chassis imaging display time:<1 second
The system automatically scans the chassis of vehicles with speeds ranging from 1 to 80km/h (customizable products with speeds ranging from 1-180km/h)

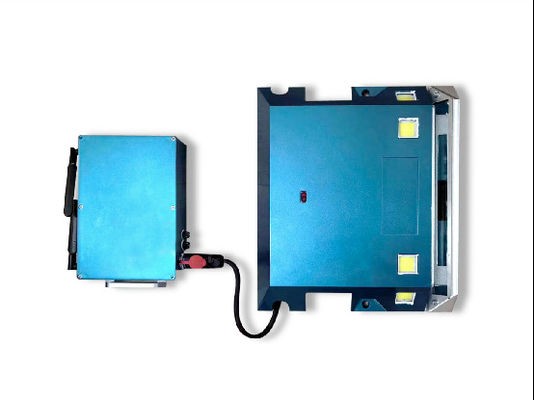

Vehicle bottom scanning imaging equipment: sealing structure design
Imaging equipment field of view angle: ≥ 180 degrees
Underbody lighting source: LED surface light source (with a lifespan greater than 50000 hours)
Rich image processing functions for the car bottom: magnifying glass, equalization, contrast, saturation, sharpening
The imaging equipment under the car has performance such as corrosion resistance, water resistance, dust prevention, and anti fog
Vehicle bottom imaging equipment anti rolling performance: 30 tons
Suitable for vehicle inspection of various chassis heights and lengths, from ordinary sedans to extended containers
