Portable Measuring Device Military Electronic Equipment Hand Held Explosive Detector

Portable Measuring Device Military Electronic Equipment Hand Held Explosive Detector

Packaging Details :
1 pc in a pp bag 10 pcs in a carton
Payment Terms :
L/C, T/T, D/P
Place of Origin :
China
Brand Name :
cxxm
Model Number :
CXXM01
MOQ :
10pcs
Delivery Time :
30days

Inquiry now

product introduction

Specifications

Model NO.: CXXM01

Data: SD Card And USB Interface

Trademark: CXXM

Specification: 150*120*30 Mm

Origin: China

Port: Xiamen, China

Transport Package: Carton

Style: Portable

Alarm Form: Audible Alarm

Certification: CE, ISO

Application: Prison, Custom

Weight: 570g

Storage Capacity: Above 1000PCS

Highlight: Portable Military Electronic Equipment, cxxm portable explosive detector, 570g Military Electronic Equipment

Customer Question & Answer

Ask something for more details

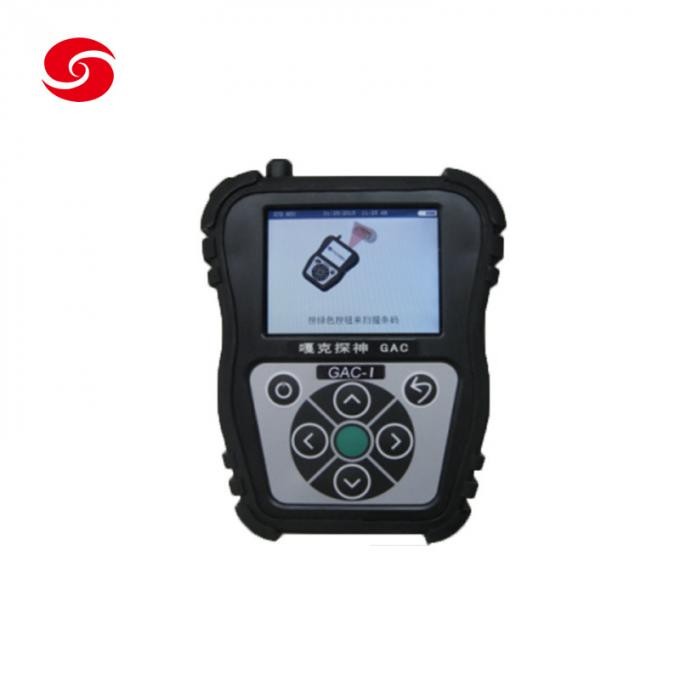

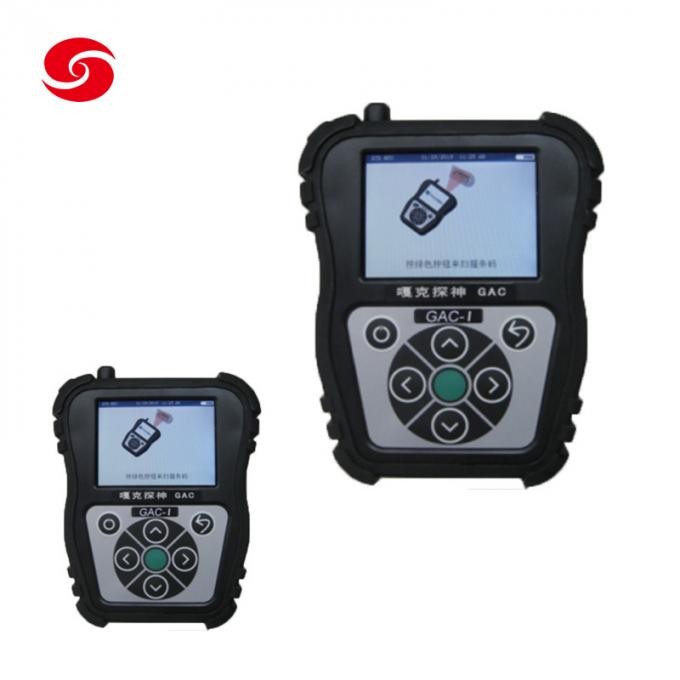

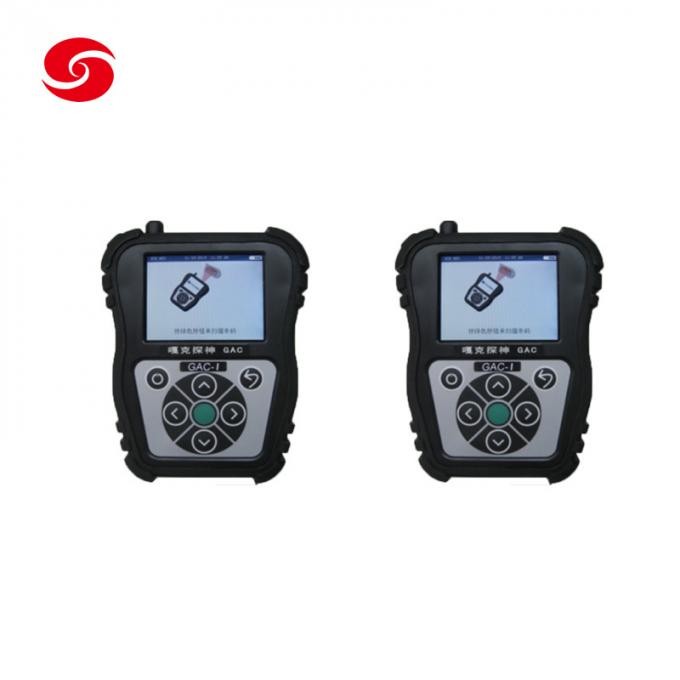

Portable Measuring Device Hand Held Explosive Detector

Principle: Automatic colorimetric method, without radioactive source
Could detect explosives:Nitro compound,Ammonium nitrate and nitrate mixture lipids,inorganic nitrate,oxymuriate,hyperoxide and etc.
Weight: 570g (included battery)
Dimension:150*120*30 mm
Could detect 10NG standard TNT explosive
Storage capacity: above 1000pcs
Data can be exported through SD card and USB interface

Technical indicators parameters
Detector principle	ion mobility spectrometry technology
Sensitivity	nanogram
False positive rate	≤1%
Detection rate	≥99%
Operating Humidity	0-95% non-condensing
Analysis time	<2 seconds
Detection time	10 seconds
Sampling way	paper wipe sampling
Cleaning time	<15 seconds
Warm-up time	20 minutes power
Power	220VAC 50-60Hz
Battery	Lithium battery 16.8V / 13Ah, continuous power supply is not less than 2 hours
Alarm	LCD display and adjustable volume alarm sound / voice + display information
System Calibration	automatic calibration, automatic fault detection
Display	3.5 inch TFT color touch screen
Dimensions	429 mm (length) × 178 mm (W) × 183 mm (H)
Weight	5.4 kg (including 2 hours battery supply)
Supplies	air purification, standards and sample test paper, chemical dopants
Explosives identify	a variety of military, civilian and improvised explosives; such as black powder, ammonium nitrate, TNT, PETN, RDX, nitroglycerin, HMX, Tetryl , DNT, NA , TATP, picric acid, C4, etc., and to add new samples needed.
