PIA-W-4088 Series Parachute & Airdrop Webbing

Product Details by Type

• PIA-W-4088 Type 4 IV
  • Specifications: 3" width, 76" length, 0.70mm thickness; max weight 1.2 Oz/Yard; min tensile strength 816 kgs/1800 lbs.
  • Colors: Sage Green, Olive Drab, White, Black.
  • Key Use: General parachute harnesses, airdrop securing.

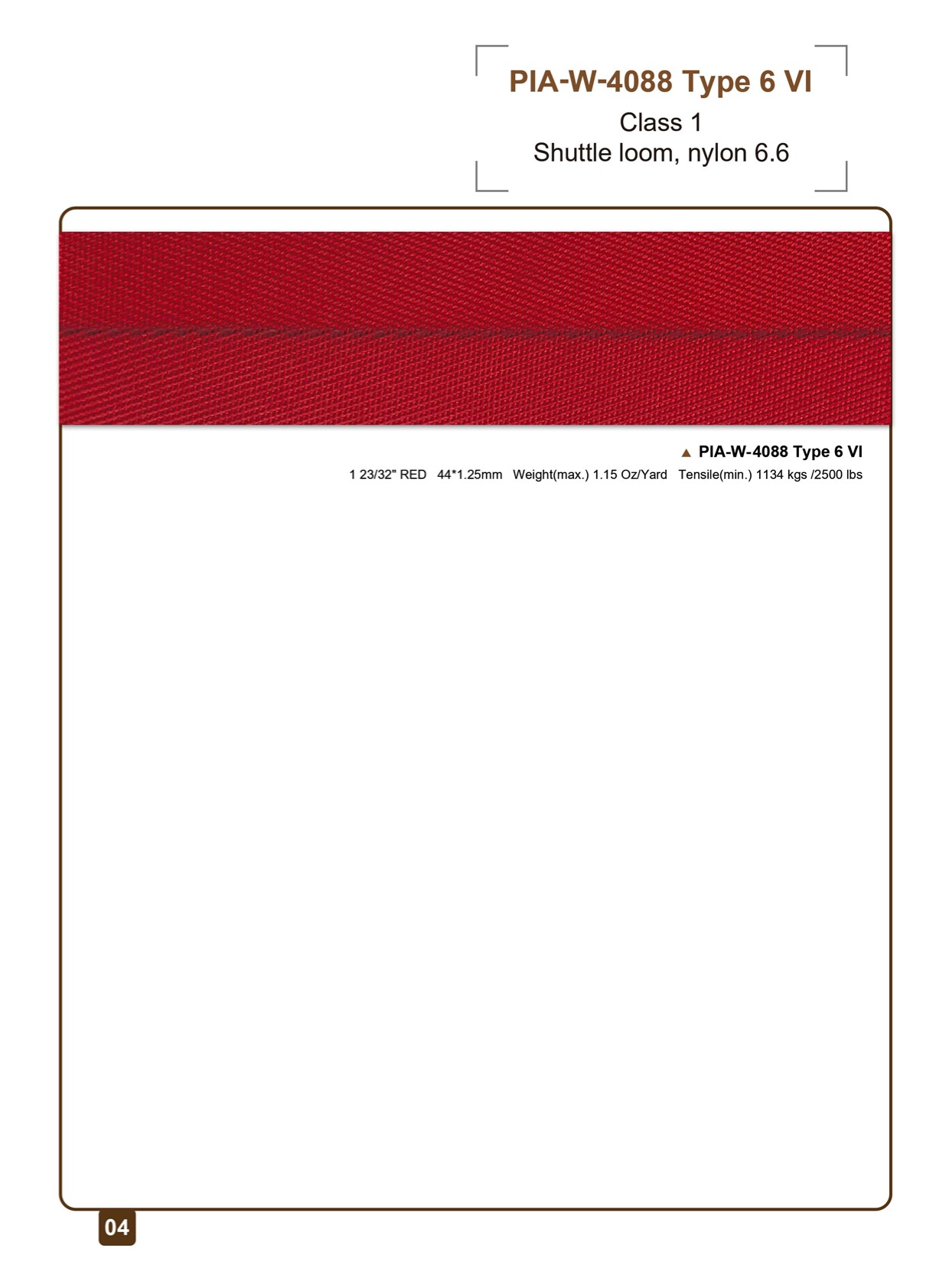

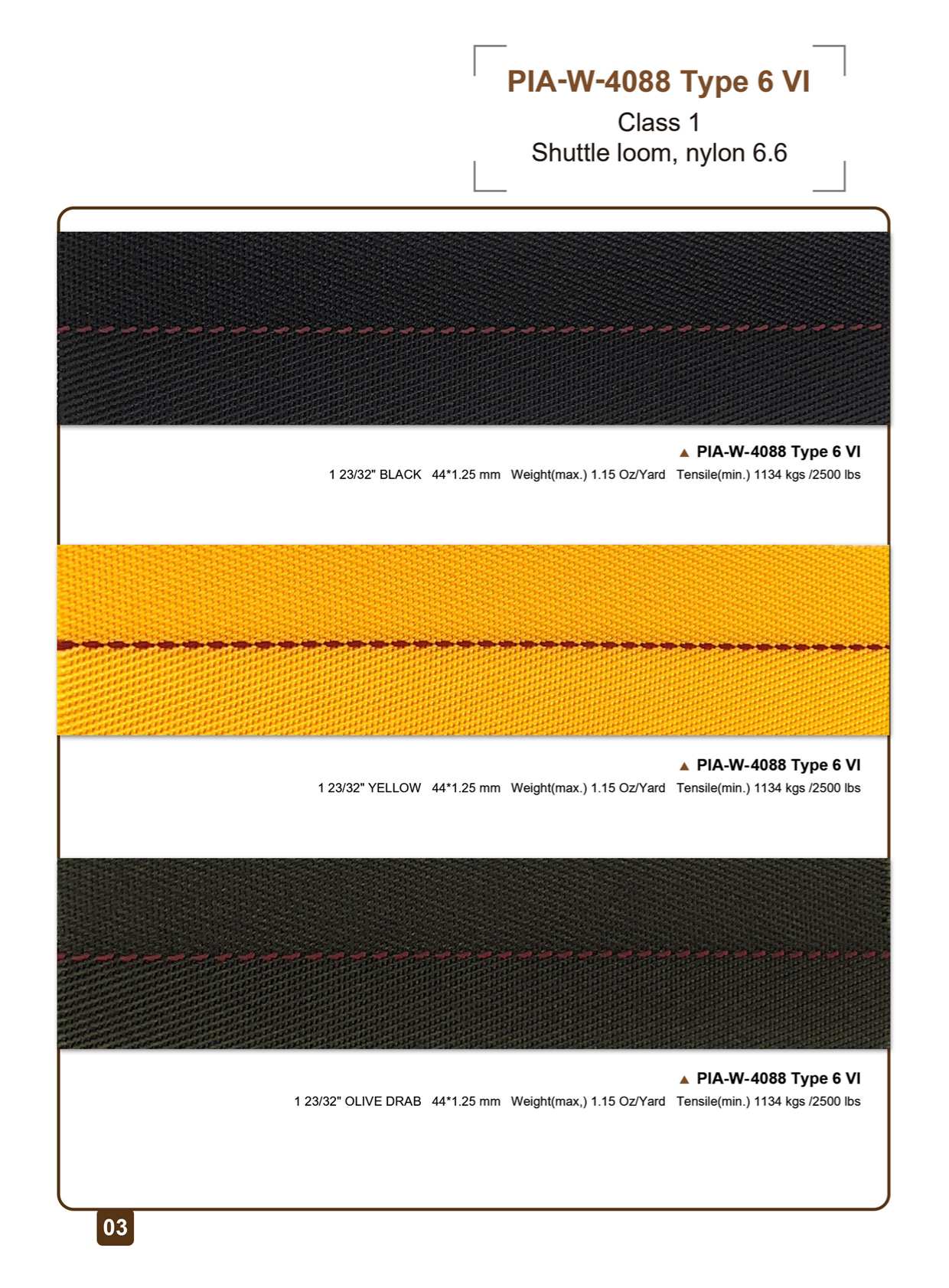

• PIA-W-4088 Type 6 VI
  • Specifications: 1 23/32" width, 44" length, 1.25mm thickness; max weight 1.15 Oz/Yard; min tensile strength 1134 kgs/2500 lbs.
  • Colors: Black, Yellow, Olive Drab, Red.
  • Key Use: Light-duty parachute components, gear lashing.

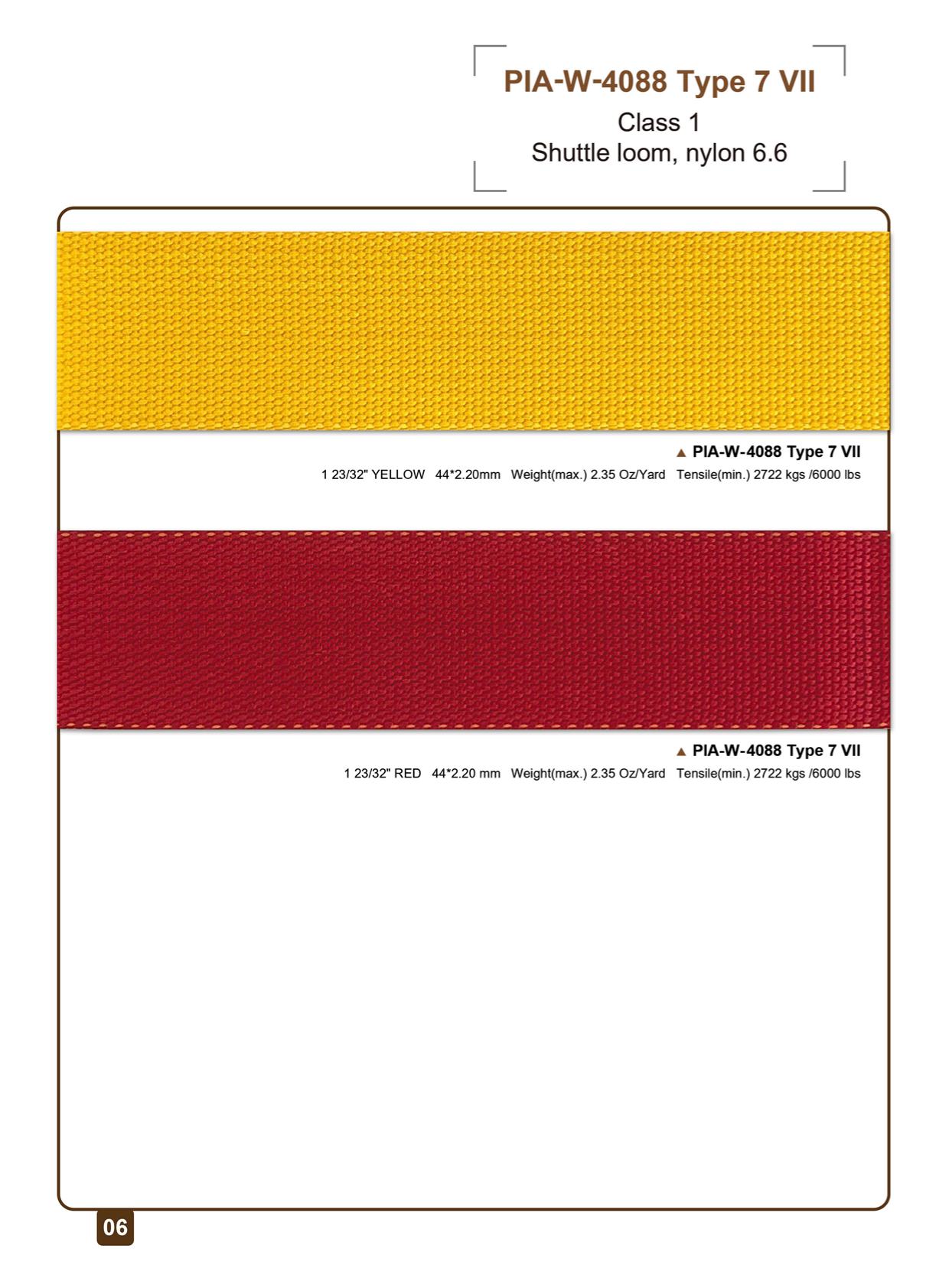

• PIA-W-4088 Type 7 VII
  • Specifications: 1 23/32" width, 44" length, 2.20mm thickness; max weight 2.35 Oz/Yard; min tensile strength 2722 kgs/6000 lbs.
  • Colors: Black, Olive Drab, Yellow, Red.
  • Key Use: Heavy-load parachute straps, high-tension airdrop connections.

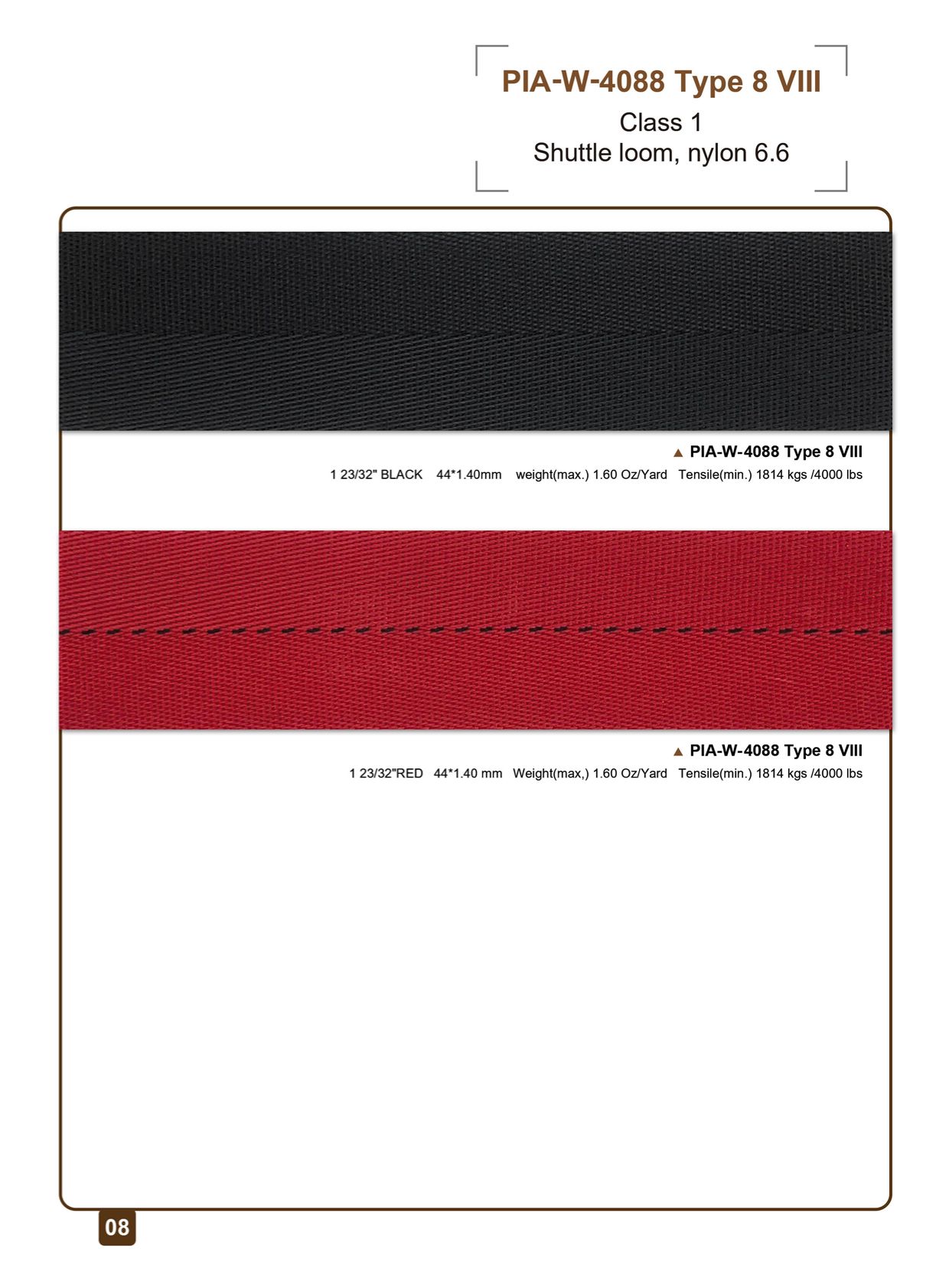

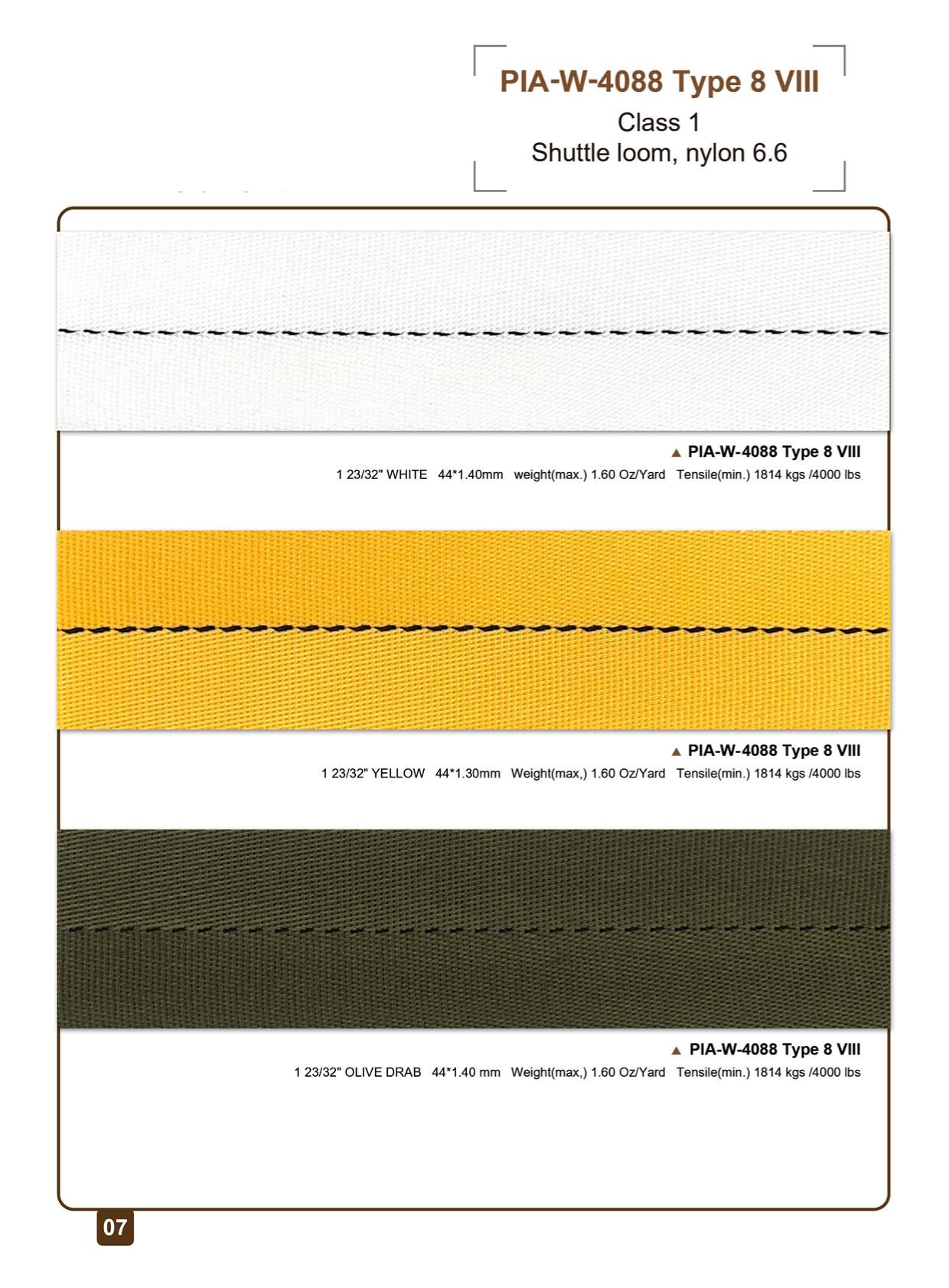

• PIA-W-4088 Type 8 VIII
  • Specifications: 1 23/32" width, 44" length, 1.30-1.40mm thickness; max weight 1.60 Oz/Yard; min tensile strength 1814 kgs/4000 lbs.
  • Colors: White, Yellow, Olive Drab, Black, Red.
  • Key Use: Mid-strength parachute lines, safety harnesses.

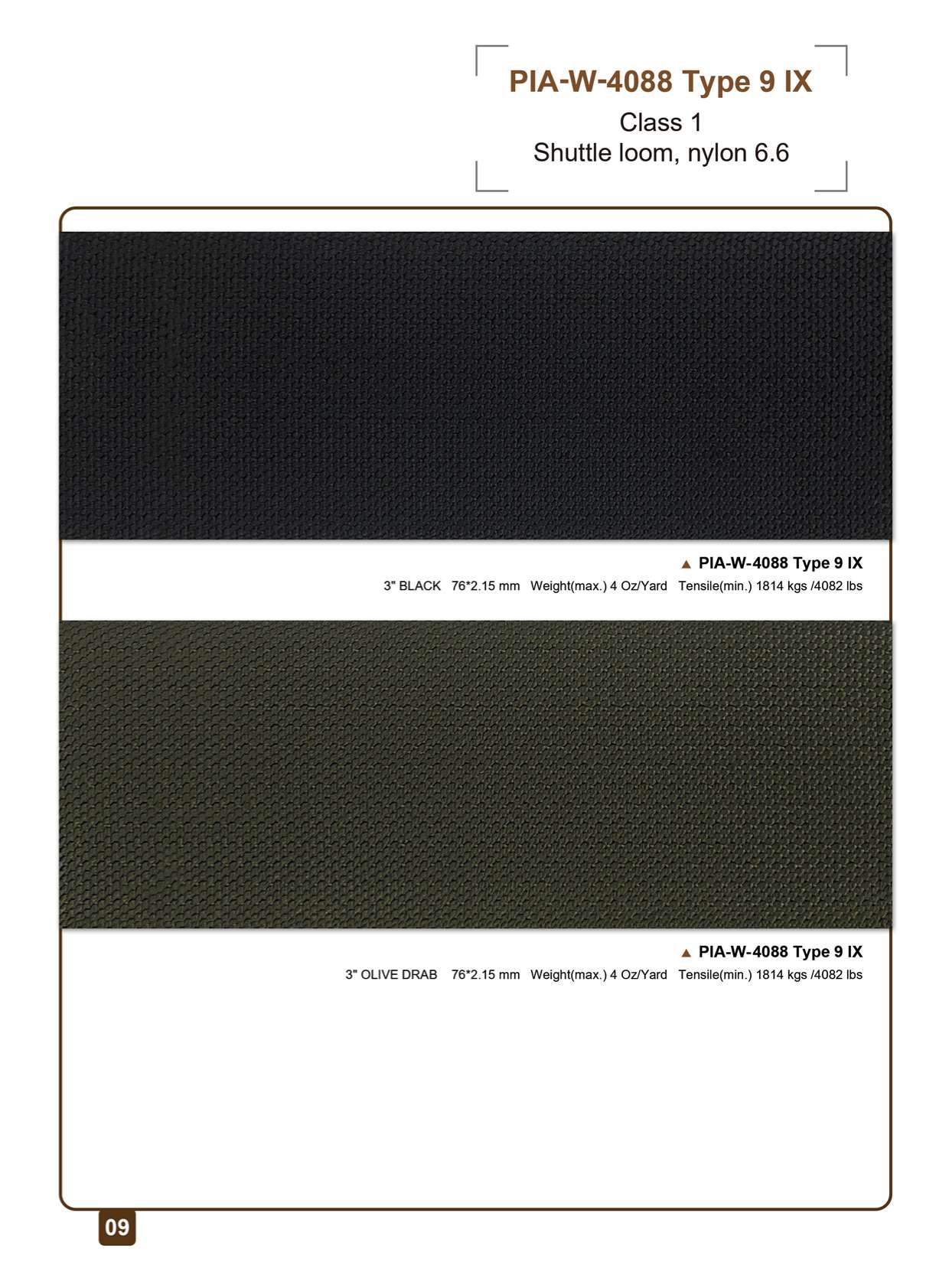

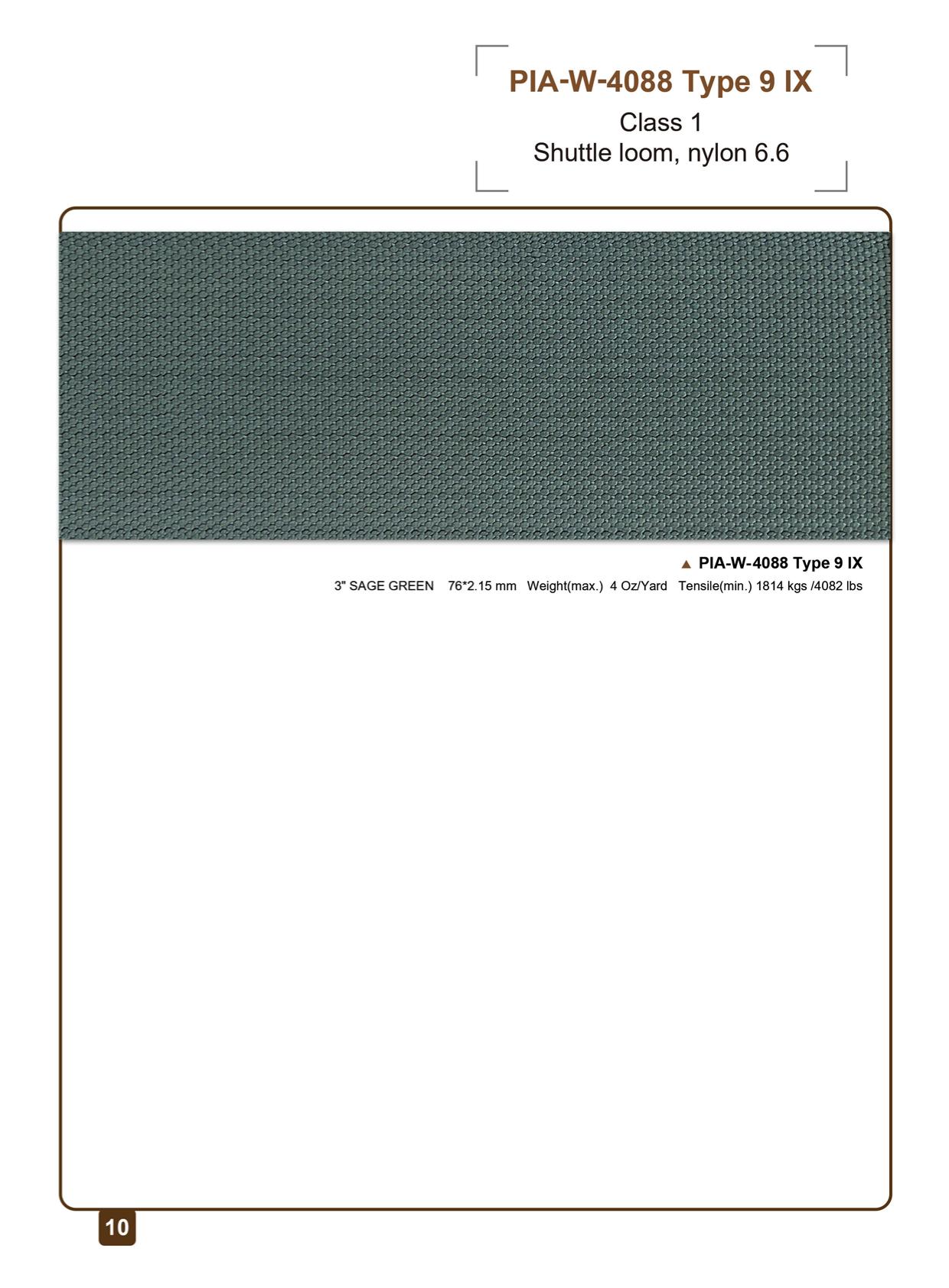

• PIA-W-4088 Type 9 IX
  • Specifications: 3" width, 76" length, 2.15mm thickness; max weight 4 Oz/Yard; min tensile strength 1814 kgs/4082 lbs.
  • Colors: Black, Olive Drab, Sage Green.
  • Key Use: Large parachute canopy attachments, heavy airdrop rigging.

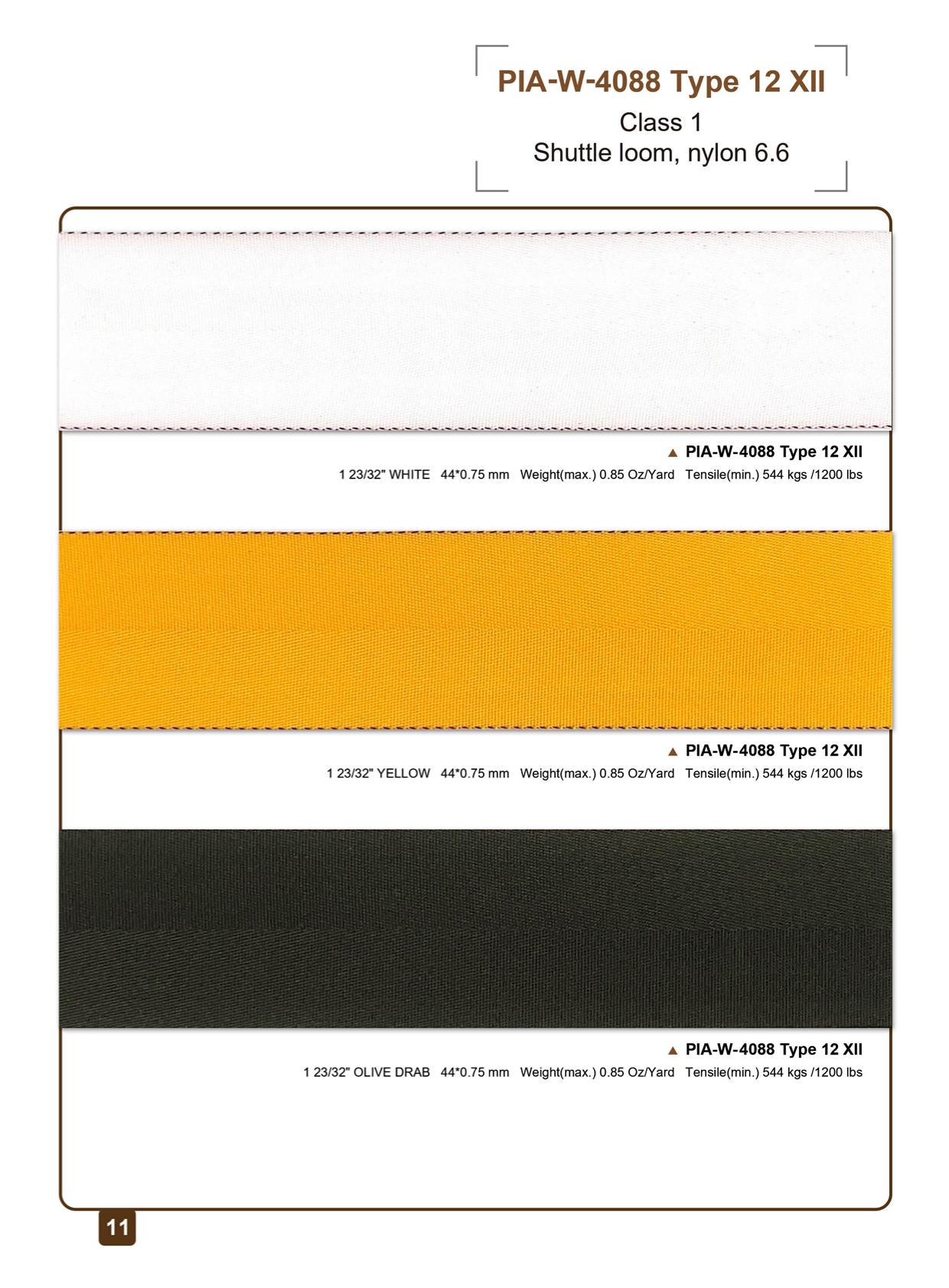

• PIA-W-4088 Type 12 XII
  • Specifications: 1 23/32" width, 44" length, 0.75mm thickness; max weight 0.85 Oz/Yard; min tensile strength 544 kgs/1200 lbs.
  • Colors: White, Yellow, Olive Drab, Black, Red.
  • Key Use: Lightweight parachute trim, gear labeling straps.

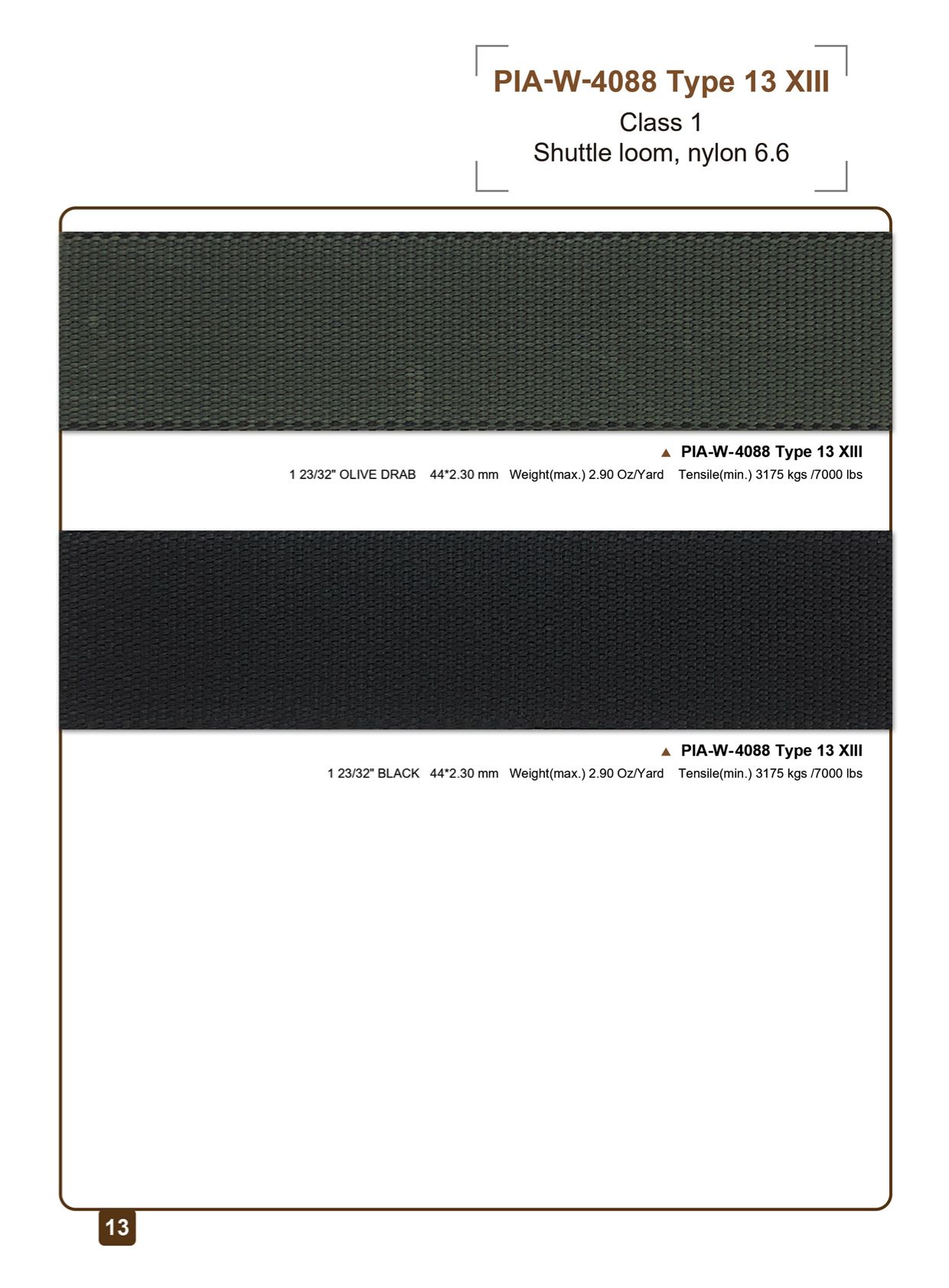

• PIA-W-4088 Type 13 XIII
  • Specifications: 1 23/32" width, 44" length, 2.30mm thickness; max weight 2.90 Oz/Yard; min tensile strength 3175 kgs/7000 lbs.
  • Colors: Olive Drab, Black.
  • Key Use: Ultra-heavy parachute load-bearing straps, military airdrop systems.

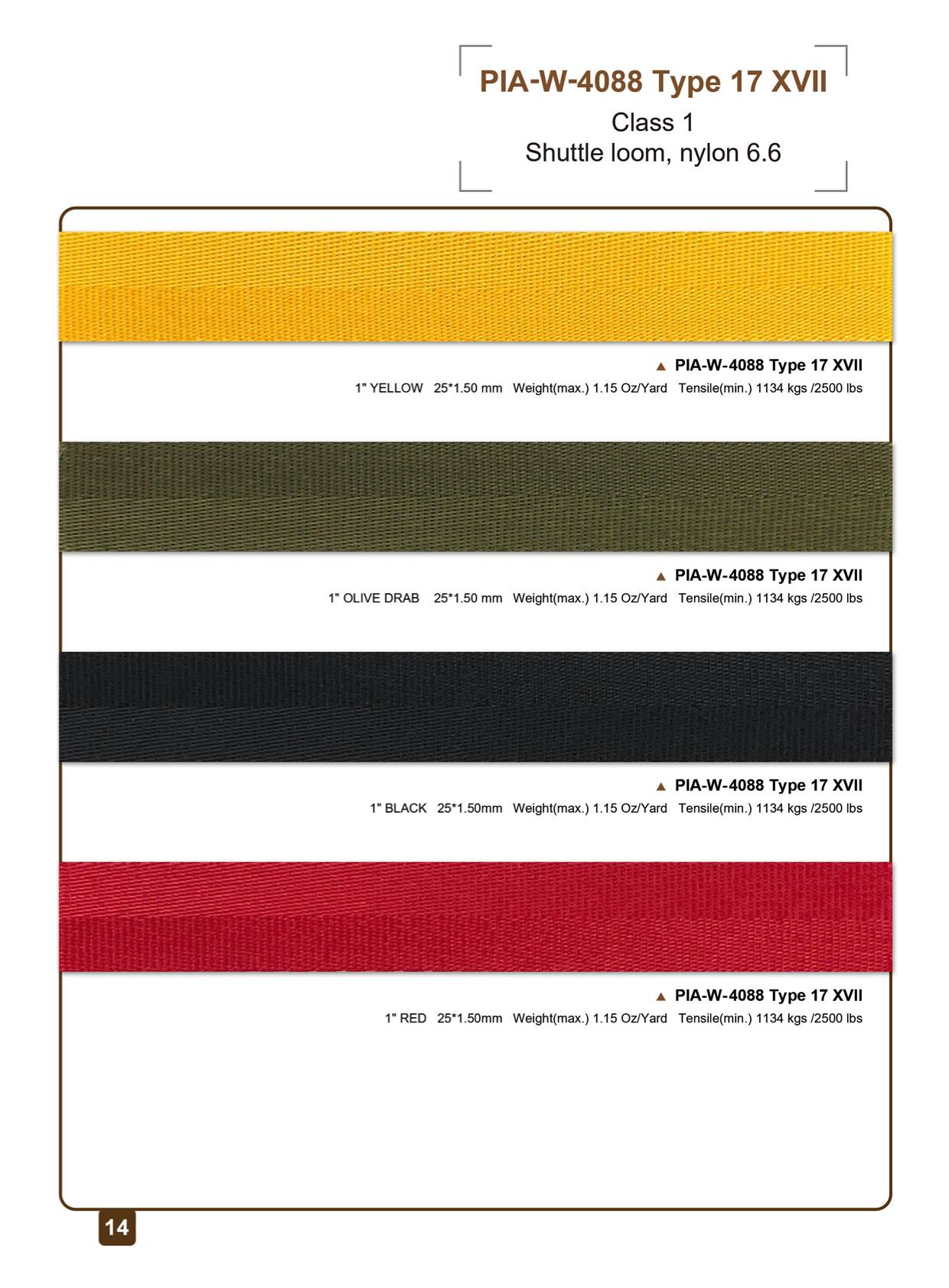

• PIA-W-4088 Type 17 XVII
  • Specifications: 1" width, 25" length, 1.50mm thickness; max weight 1.15 Oz/Yard; min tensile strength 1134 kgs/2500 lbs.
  • Colors: Yellow, Olive Drab, Black, Red.
  • Key Use: Parachute accessory lashing, small gear securing.

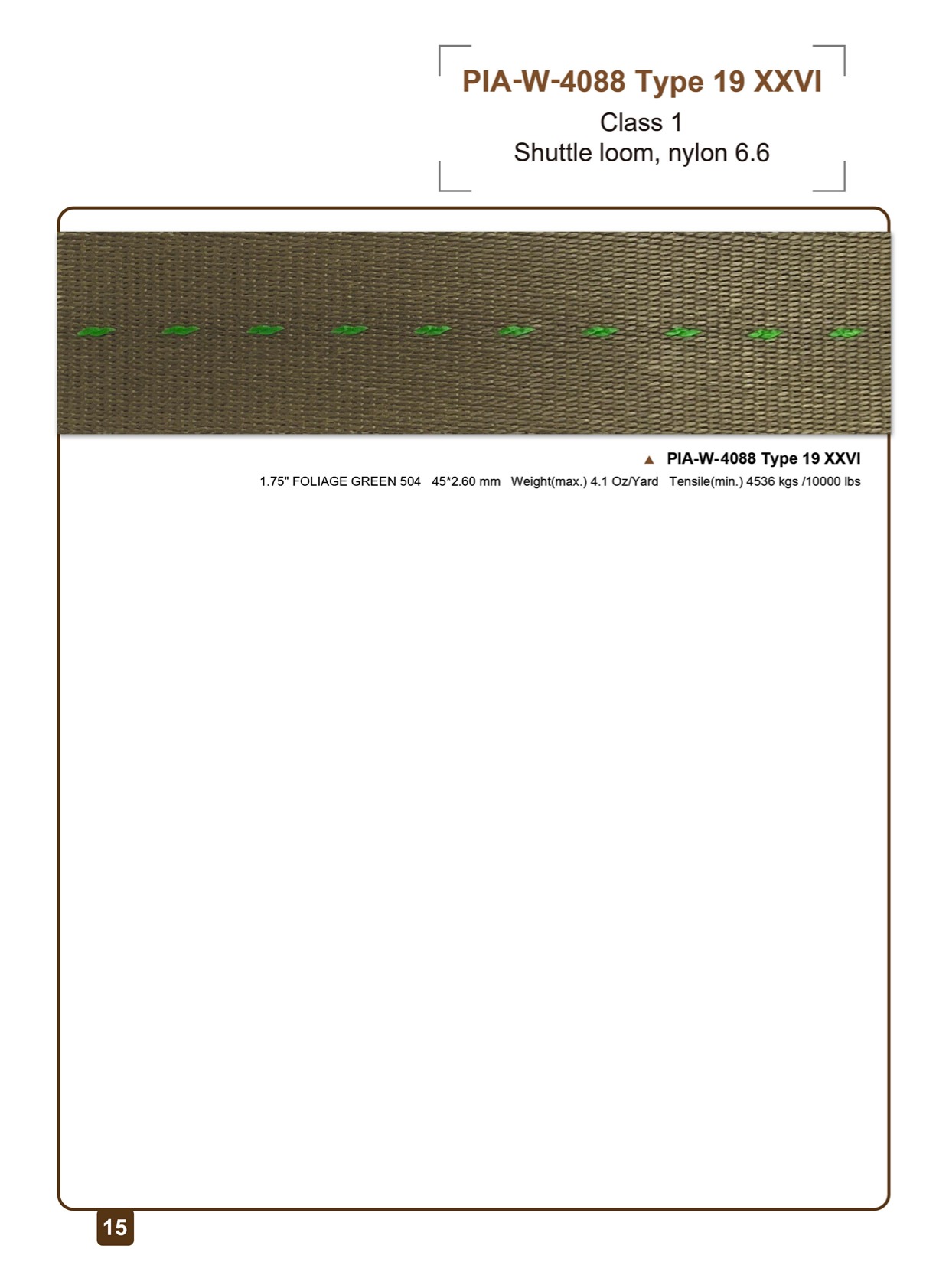

• PIA-W-4088 Type 19 XXVI
  • Specifications: 1.75" width, 504 45" length, 2.60mm thickness; max weight 4.1 Oz/Yard; min tensile strength 4536 kgs/10000 lbs.
  • Color: Foliage Green.
  • Key Use: Extreme-load airdrop rigging, military heavy-equipment parachutes.
• PIA-W-4088 Type 24 XXIV
  • Specifications: 1 23/32" width, 50" length, 1.80mm thickness; max weight 2.25 Oz/Yard; min tensile strength 2495 kgs/5500 lbs.
  • Colors: Black, Red.
  • Key Use: Aerospace safety belts, high-reliability parachute harnesses.

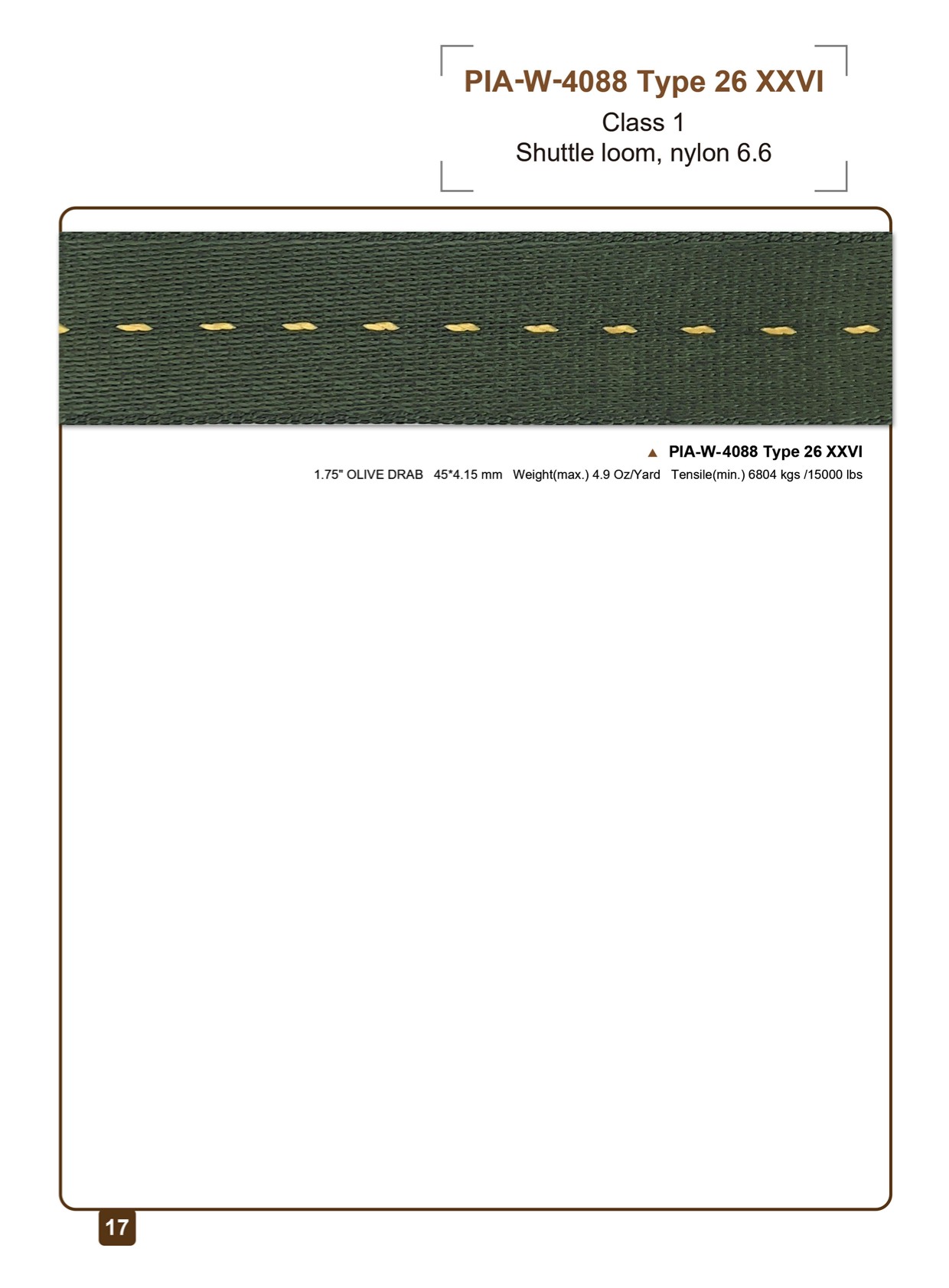

• PIA-W-4088 Type 26 XXVI
  • Specifications: 1.75" width, 45" length, 4.15mm thickness; max weight 4.9 Oz/Yard; min tensile strength 6804 kgs/15000 lbs.
  • Color: Olive Drab.
  • Key Use: Industrial-grade parachute systems, ultra-heavy airdrop gear.
