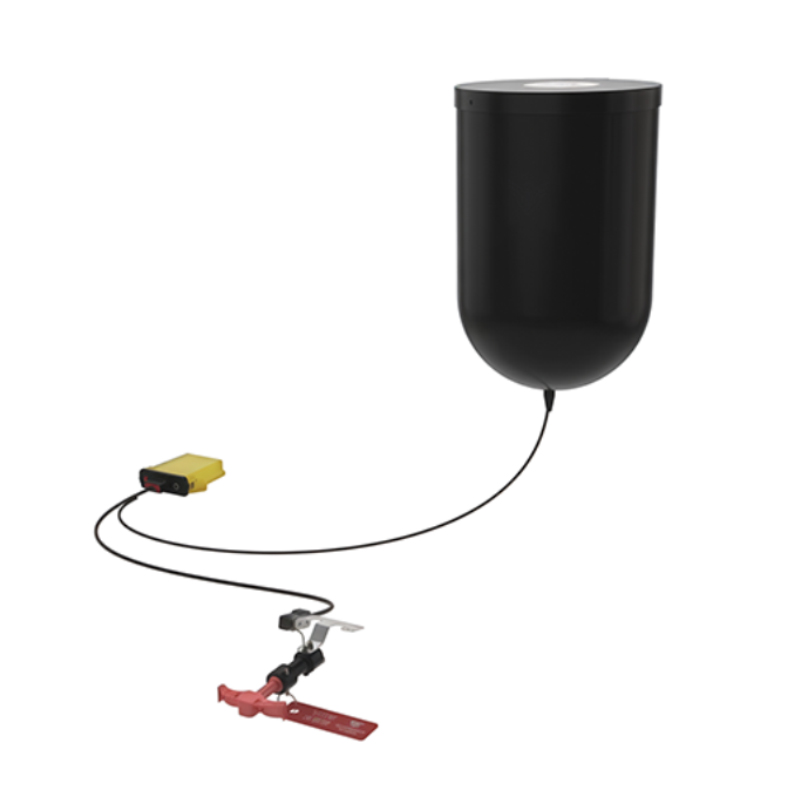

The T193 Emergency Recovery Parachute System

Core Advantages:

• Rapid Deployment via Gas-Ejection Mechanism: Utilizes advanced gas-ejection technology to ensure fast activation, with deployment times as low as 3 seconds (for lighter models) under hovering conditions. This speed is vital for low-altitude emergencies, where every second counts.
• Versatile Activation Modes: Supports manual operation, flight control system-triggered deployment, and autonomous activation, providing flexibility for diverse operational scenarios and ensuring no-fail response in critical situations.
• Seamless Integration: Compatible with onboard electronics via industry-standard protocols (CAN, PWM, RS-232), ensuring smooth connectivity with flight control units (ECUs) for hassle-free installation.
• Robust Performance: Operates in extreme temperatures (-40°C to +60°C) and offers long-term reliability, with a 12-year service life, 6-year maintenance interval, and 6-year packing cycle—reducing lifecycle costs.
• Enhanced Safety Metrics: Effectively slows descent speeds to ≤7m/s (for lighter models) or ≤7.5m/s (for heavier models), equivalent to a fall from just 2.5–2.9 meters, protecting passengers, crew, and equipment during emergency landings.

Model Specifications (Tailored to Payload Needs):

• T193-250: For 250kg max weight. 3s deployment, 60m minimum altitude, 71㎡ parachute area, 8kg system weight.
• T193-350: For 350kg max weight. 3s deployment, 60m minimum altitude, 92㎡ parachute area, 9.9kg system weight.
• T193-500: For 500kg max weight. 3s deployment, 60m minimum altitude, 110㎡ parachute area, 11.6kg system weight.
• T193-650: For 650kg max weight. 4s deployment, 70m minimum altitude, 140㎡ parachute area, 15.1kg system weight.
• T193-800: For 800kg max weight. 4s deployment, 80m minimum altitude, 175㎡ parachute area, 16.9kg system weight.
• T193-1000: For 1000kg max weight. 4s deployment, 90m minimum altitude, 206㎡ parachute area, 23.1kg system weight.
