Product Parameters

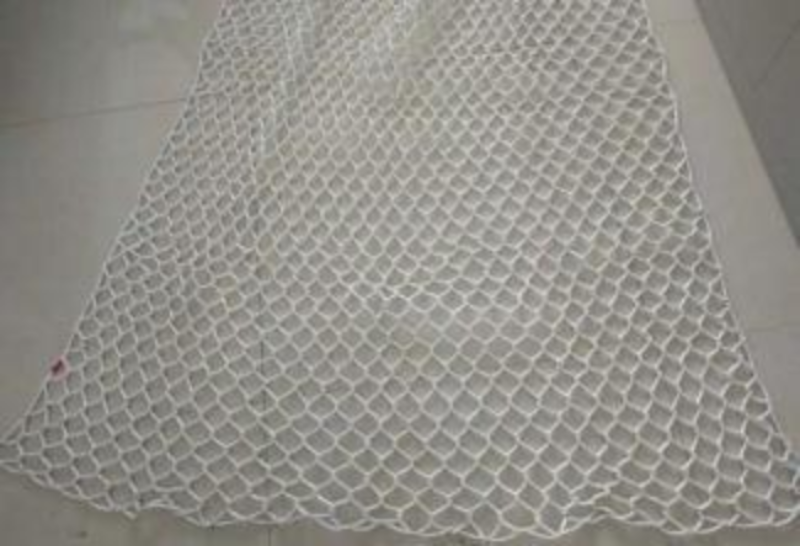

The interception net structure consists of a UHMWPE rope net, a frame and a tensioning device, The frame and tensioning device can be selected by the customer according to the actual situation . It is woven from ultra-high molecular weight polyethylene strips. The installation distance should be kept above 450 mm .
The interception net surface density is 1kg/㎡, the rope diameter is 5mm, and the mesh size is 40mm×40mm
|
Braided structure
|
width
|
Dimension diameter
|
Raw material strength
|
Breaking strength
|
|
12 shares
|
custom
made
|
5 mm
|
28g/d
|
150KN
|
Test Data

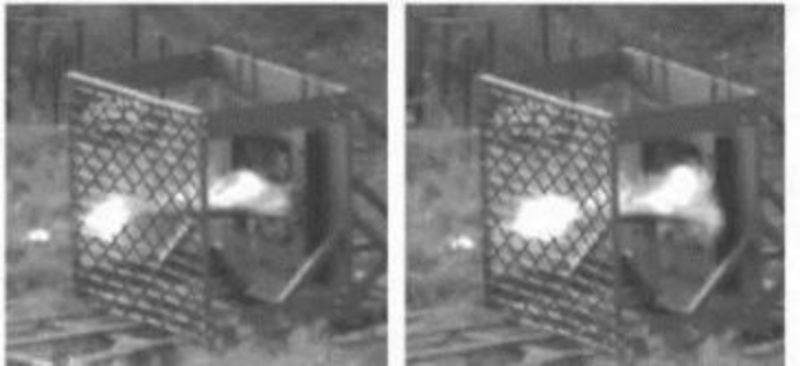

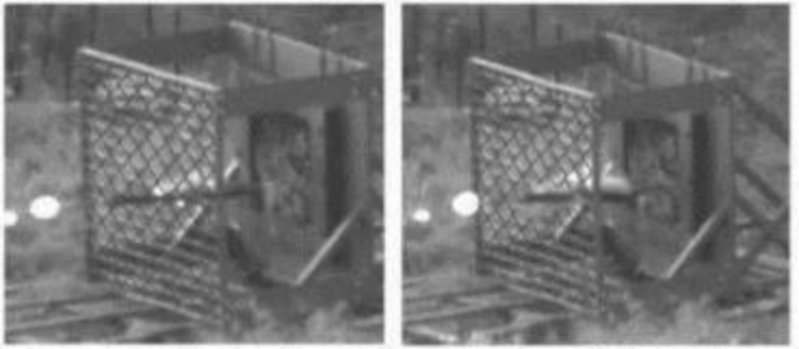

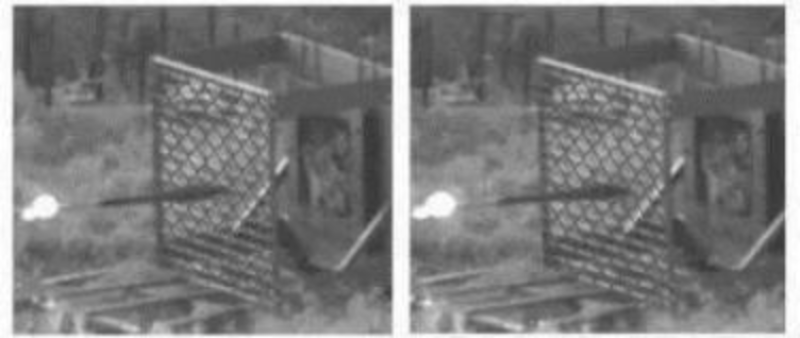

Testing of the interception net system at Kazakhstan,5 RPG - 7 rocket test, effectively intercepted 3 rounds (the fuse of the projectile was not triggered, and no metal Jet ), interception rate is 60%.At the same time, suicide drone impact tests were conducted, but all attempts to intercept them failed.
Application Scenarios

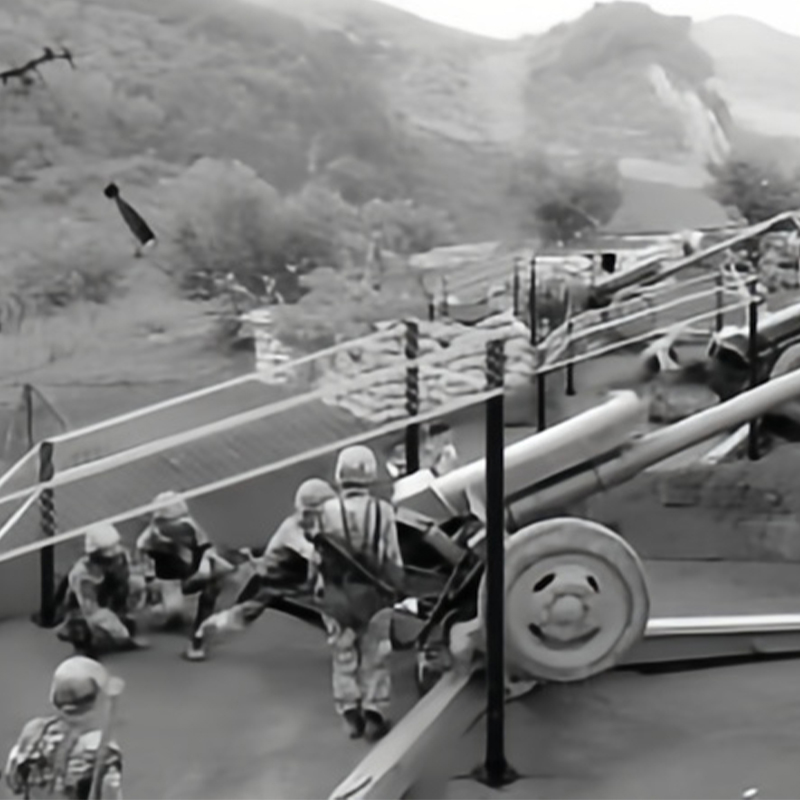

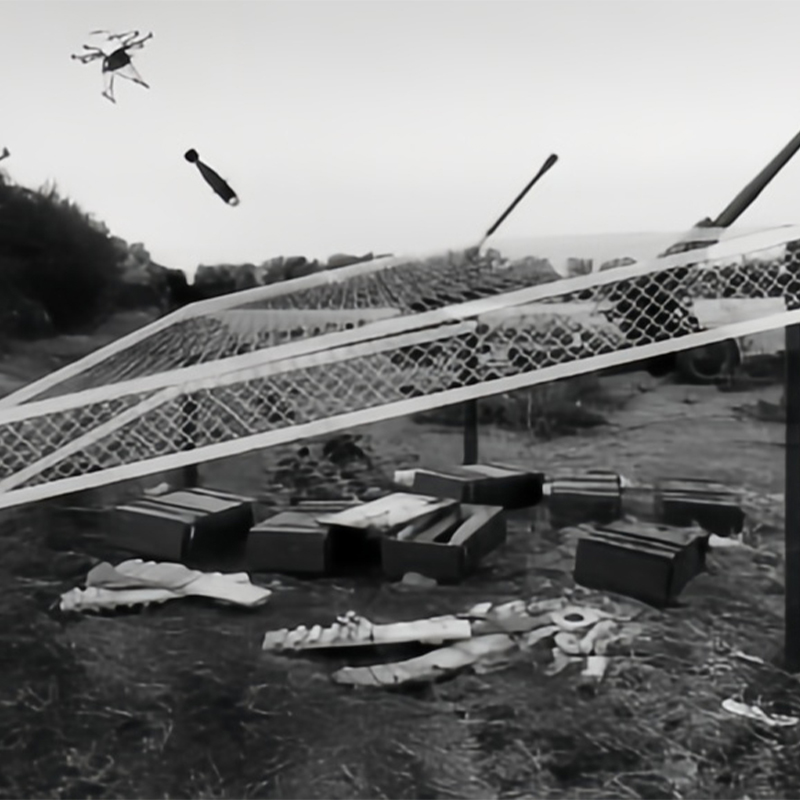

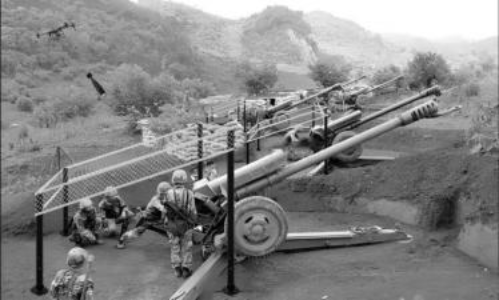

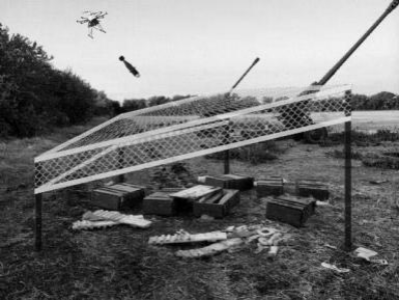

Artillery position: placed at the rear of the position to protect against rear attacks from RPGs and drones.
\

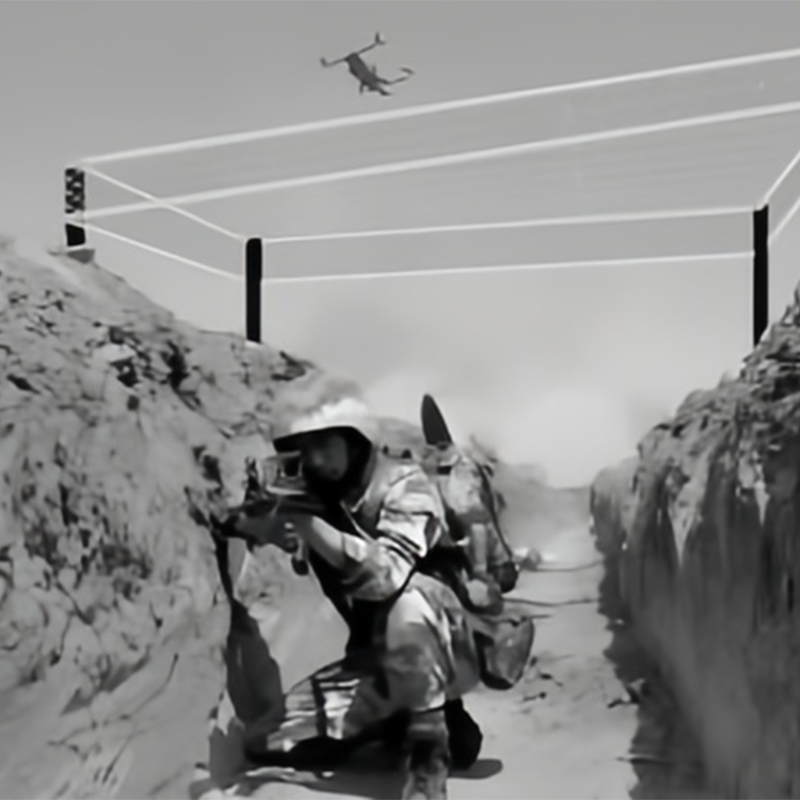

Field command post/tunnel: placed on the top to protect against top bombing attacks from drones.

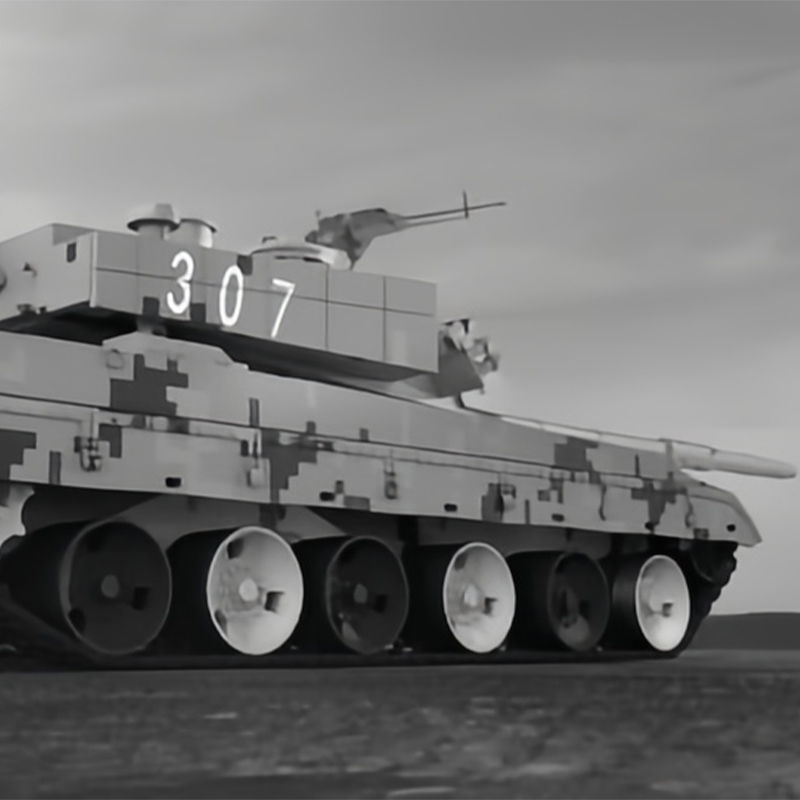

Rear of the tank: placed at the rear of the position to protect against rear attacks from RPGs and drones.
