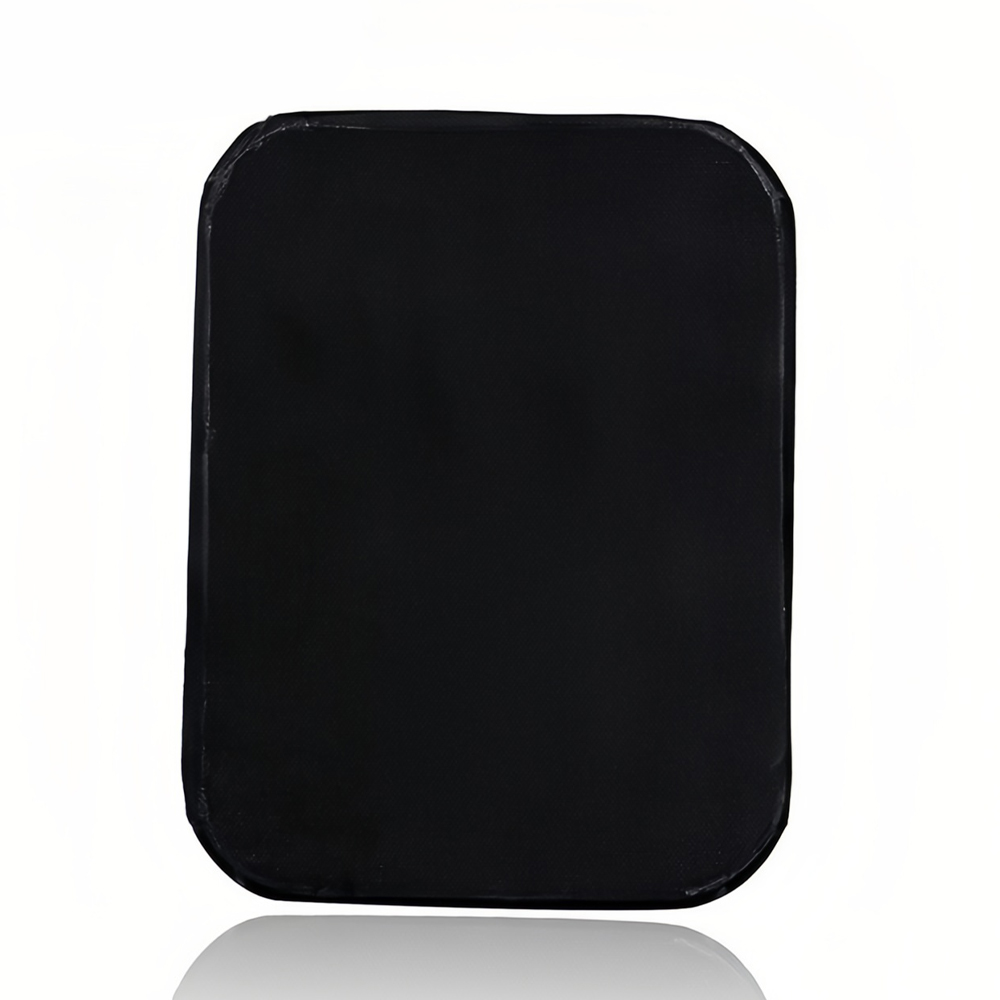

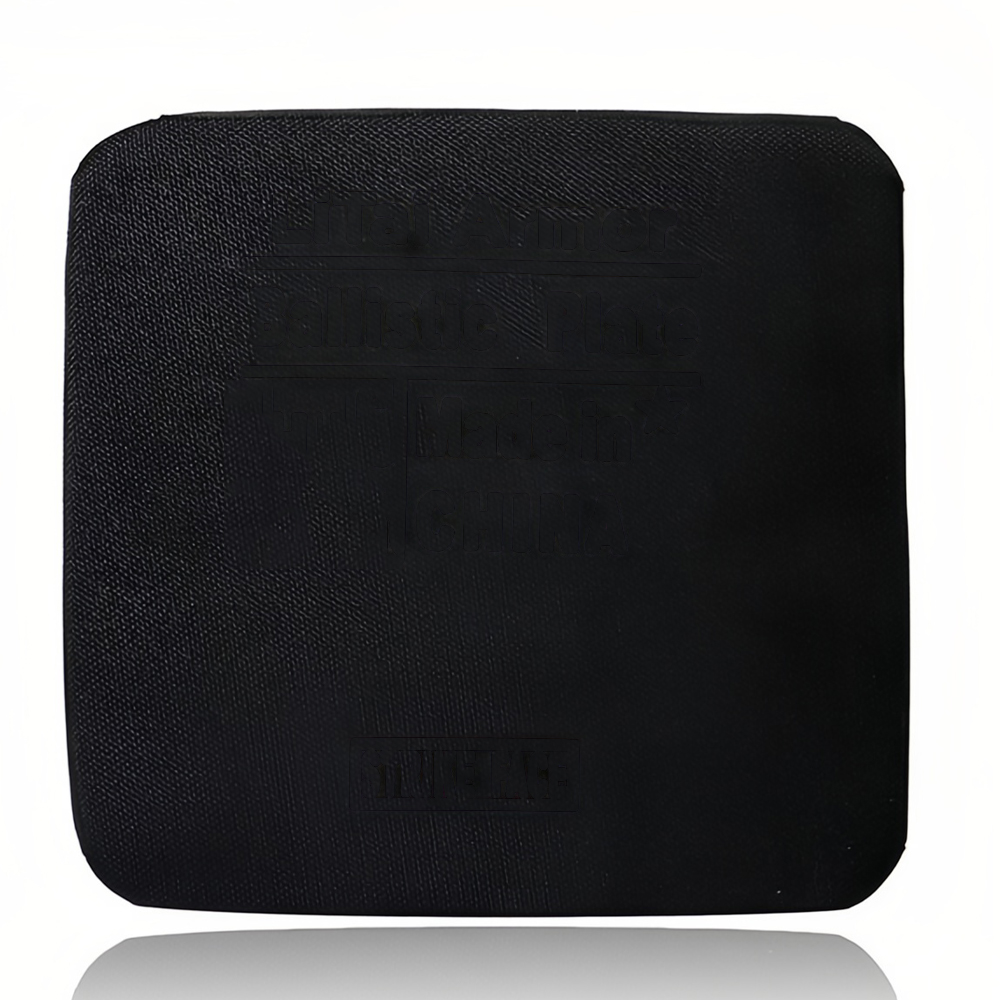

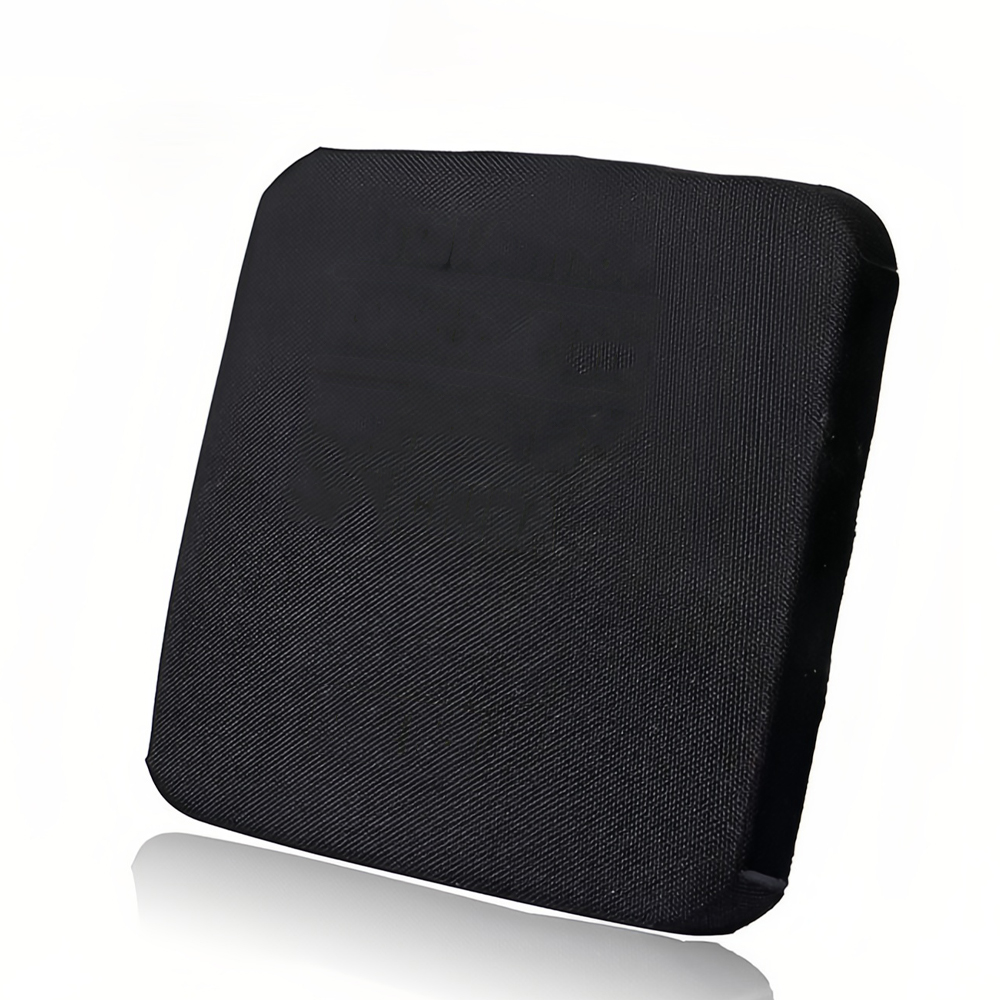

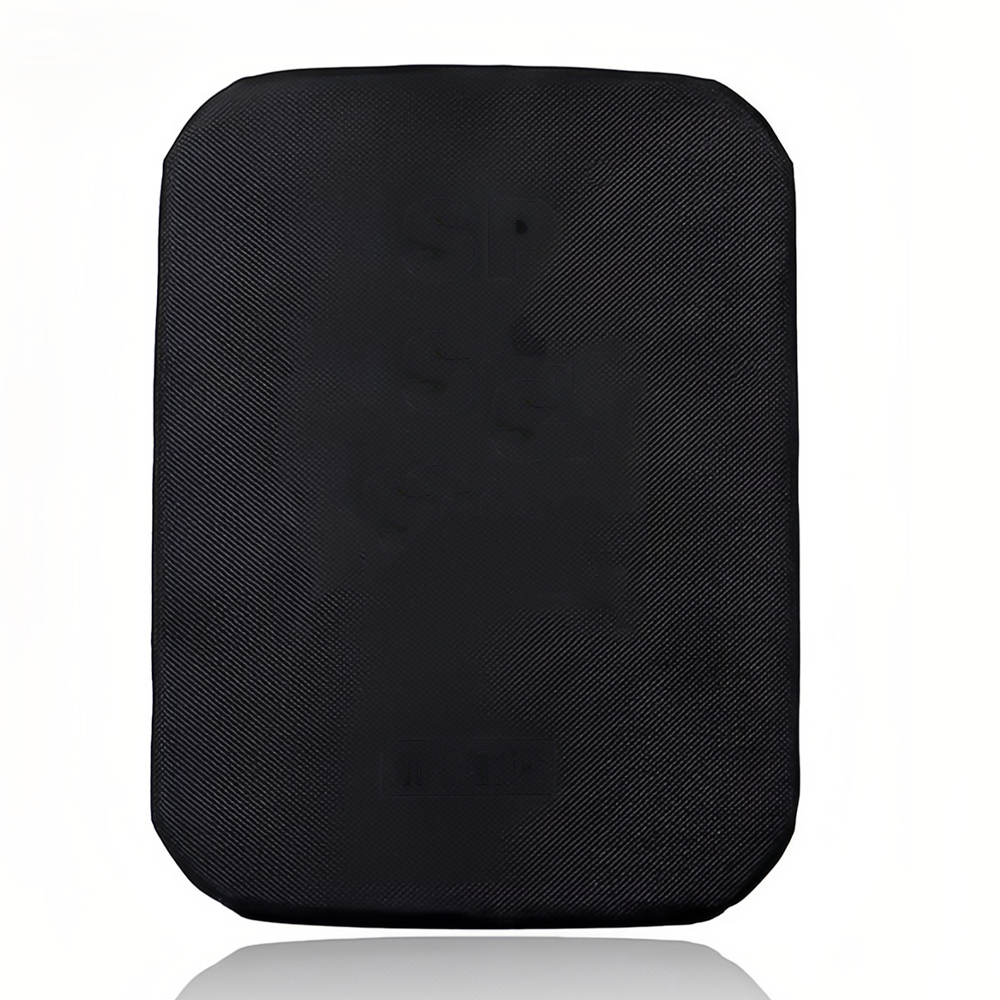

This mini-sized stand-alone ballistic plate delivers top-tier NIJ 0101.06 Level IV protection—independently stopping not just mainstream rifle rounds (7.62×51 M80 NATO, 7.62×39 AK47 MSC, 5.56×45 SS109/M193) but also 7.62×63 M2 AP armor-piercing ammo at 15 meters, no extra armor needed. Measuring 155×205mm (≈6×8 inches) and weighing only 1.10kg (40% lighter than full-size Level IV plates), it’s designed for targeted defense of critical non-torso areas (shoulders, neck, side torso). Its multi-curve shape conforms to curved body surfaces, while the outer 600D black Oxford fabric offers waterproof and flame-retardant performance. Backed by a 5-year warranty, it’s ideal for SWAT counter-terrorism, military special forces, high-risk executive security, and tactical training—providing high-level armor-piercing defense without sacrificing mobility.
—— Mini-Sized NIJ Level IV Stand-Alone Protection: Shields Critical Areas Against Armor-Piercing Rounds
I. Core Highlights: Four Key Advantages of Compact, High-Level Defense
1. NIJ 0101.06 Level IV Stand-Alone Protection (Armor-Piercing Ready)
The highest tactical protection grade—independently meets NIJ 0101.06 Level IV standards, no additional armor required. At 15 meters, it stops not only mainstream rifle rounds (7.62×51 M80 NATO, 7.62×39 AK47 MSC, 5.56×45 SS109/M193) but also 7.62×63 M2 AP (U.S. military armor-piercing ammo)—a critical upgrade for scenarios facing high-powered threats (e.g., enemy combatants with modified rifles, armored criminal encounters).
2. Ultra-Compact 155×205mm Size for Targeted Protection
Measuring just 155×205mm±2mm (≈6×8 inches), it’s designed for non-torso critical areas or as supplementary armor. Ideal for shielding vulnerable spots like the neck, shoulders, upper arms, or side torso—areas often exposed by full-size plates. Compatible with specialized plate carriers (e.g., shoulder armor pouches, neck guards) or as an add-on to standard torso plates.
3. 1.10kg Lightweight + Multi-Curve Ergonomics
Weighing only 1.10±0.05kg per plate—40% lighter than full-size Level IV plates (≈2.5kg) and lighter than a standard tactical helmet—it adds minimal burden. The multi-curve design conforms to curved body surfaces (e.g., shoulders, neck), avoiding the "bulk" of flat mini-plates and ensuring comfort during extended wear (e.g., 6+ hour missions).
4. Monolithic SiC Ceramic Durability + 5-Year Warranty
Built with one-piece silicon carbide (SiC) ceramic (hardness HV0.5 ≥ 2800—harder than standard SiC) to resist armor-piercing M2 AP rounds without cracking. The outer 600D black Oxford fabric is waterproof (no seepage in heavy rain) and flame-retardant, while a 5-year warranty guarantees reliability for high-threat use.
II. Detailed Specifications: Precision Engineered for Targeted Tactical Defense
|
Category |
Specification |
Description |
|
Model Info |
Model Number: S-4T155205SA |
Mini-sized stand-alone Level IV ballistic plate; for targeted critical area protection |
|
Basic Specs |
Size: 155×205mm±2mm |
Compact ≈6×8 inch design; fits shoulder/neck armor pouches or supplementary carrier slots |
|
|
Thickness: 27±2mm |
Optimized for Level IV protection—thinner than bulkier full-size Level IV plates (30+mm) |
|
|
Weight: 1.10±0.05kg |
Per plate; 2-plate setup (e.g., dual shoulders) totals ~2.2kg—no impact on mobility |
|
Protection Core |
Material: Monolithic Silicon Carbide Ceramic + UHMWPE |
Monolithic SiC = shatters armor-piercing cores; UHMWPE = absorbs residual energy (no seams, no penetration gaps) |
|
|
Ceramic Coverage: 150×200mm |
Full mini-plate ceramic coverage—no "partial hardening" weak spots; aligns with critical area dimensions |
|
|
Protection Level: NIJ 0101.06 Level IV Stand Alone |
Independent defense against armor-piercing rounds; no need for Level IIIA soft vests |
|
Structural Details |
Curvature: Multi Curve |
3D-contoured to fit curved body parts (shoulders, neck, side torso); reduces pressure vs. single-curve mini-plates |
|
|
Outer Covering: 600D Black Oxford Fabric (Waterproof + Flame-Retardant) |
Matte black low-visibility finish; scratch-resistant (handles gear friction) and heat-resistant |
|
Test Performance |
Shooting Distance: 15M |
Complies with NIJ 0101.06 Level IV stand-alone test protocols (including M2 AP rounds) |
|
Bullets Stopped |
7.62×51 M80 NATO; 7.62×39 AK47 MSC; 5.56×45 SS109/M193; 7.62×63 M2 AP |
Covers standard rifle + armor-piercing threats for high-risk missions |
|
Warranty |
Warranty Period: 5 Years |
Valid for normal tactical use (excludes damage from misuse: dropping >1.5m, crushing, chemical exposure) |
1. Step 1: Monolithic SiC Ceramic Shatters Armor-Piercing Cores
The one-piece SiC ceramic’s ultra-high hardness (HV0.5 ≥ 2800) is critical for stopping 7.62×63 M2 AP rounds—whose steel cores can penetrate standard III 级 plates. When an M2 AP round hits, the monolithic ceramic instantly fractures the hard steel core into tiny fragments, neutralizing its piercing ability (segmented ceramic would risk core bypass through seams).
2. Step 2: UHMWPE Absorbs Residual Energy
Behind the ceramic, gel-spun UHMWPE fibers (15x stronger than steel by weight) catch the fragmented core and absorb remaining kinetic energy. Unlike heavy steel Level IV plates, UHMWPE keeps the weight at 1.10kg—making the mini-plate wearable on non-torso areas.
3. Stand-Alone Advantage for Targeted Defense
Full-size Level IV plates are heavy and restrict movement on non-torso areas. This mini-plate’s stand-alone design eliminates the need for layered soft armor, allowing it to be used as a "spot shield"—protecting only the most exposed critical areas without weighing down the wearer.
IV. Application Scenarios: Tailored for High-Threat, Targeted Protection
|
User/Scenario |
Core Value |
Usage Suggestions |
|
SWAT Counter-Terrorism Teams |
Level IV = stops M2 AP; mini-size = shields shoulders/neck |
Attach to shoulder armor pouches for raids on suspects with armor-piercing rifles |
|
Military Special Forces |
Lightweight 1.10kg = no mobility loss; multi-curve = fits combat gear |
Use as side torso add-ons to standard plates for urban combat (prevents flank M2 AP hits) |
|
High-Risk Executive Security |
Compact size = low profile; Level IV = defends against modified weapons |
Integrate into neck guards or discreet shoulder carriers for VIPs facing armored threats |
|
Tactical Training Instructors |
Monolithic SiC = durable; mini-size = simulates real-world spot threats |
Use in training drills to teach "critical area protection" against armor-piercing rounds |
1. Critical Ceramic Care: Monolithic SiC is sensitive to impact—do not drop from >1.5m or crush (even small hidden cracks will reduce M2 AP protection). If dropped, contact the manufacturer for ultrasonic crack testing (visual checks may miss internal damage).
2. Storage: Keep in a dry, cool area (relative humidity ≤ 75%); avoid direct sunlight (UV degrades UHMWPE) or temperatures above 50℃ (softens UHMWPE fibers).
3. Warranty Compliance: Do not cut, drill, or modify the plate—this breaks the monolithic ceramic’s integrity and voids the 5-year warranty. Avoid strong acids/solvents (damage outer fabric and UHMWPE).
Service Life: After 5 years, replace if: (1) it stops an M2 AP round (ceramic will be compromised); (2) backface deformation exceeds 44mm post-impact; (3) ceramic cracks are visible.
