This advanced stand-alone ballistic plate exceeds standard NIJ 0101.06 Level III to meet Level III+ standards, reliably stopping 7.62×51mm M80 NATO, 7.62×39mm AK47 MSC, and 5.56×45mm M193 (15m) with enhanced resistance to multiple hits. Its triple-layer design (SiC ceramic for bullet fragmentation, HPPE for energy absorption, Anti-BFS for trauma reduction) balances protection and agility—weighing only 2.13kg (30% lighter than steel III+ plates) for 6+ hour missions. With a single curve contour (fits 90% of standard plate carriers), waterproof/flame-retardant 600D Oxford fabric, and 5-year warranty, it’s ideal for counter-terrorism raids, border security, high-risk executive protection, and advanced tactical training.
1. NIJ 0101.06 Level III+ Superior Protection
Exceeds standard NIJ Level III requirements to meet Level III+ standards—delivering enhanced resistance to high-velocity rifle threats. At 15 meters, it reliably stops 7.62×51mm M80 NATO (NATO full-power ammo), 7.62×39mm AK47 MSC (AK47 standard ammo), and 5.56×45mm M193 (M16/AR-15 high-velocity ammo), with improved tolerance for multiple hits or near-miss impacts (vs. conventional Level III plates). Ideal for high-risk missions like counter-terrorism raids or border security, where threat intensity exceeds routine patrol scenarios.

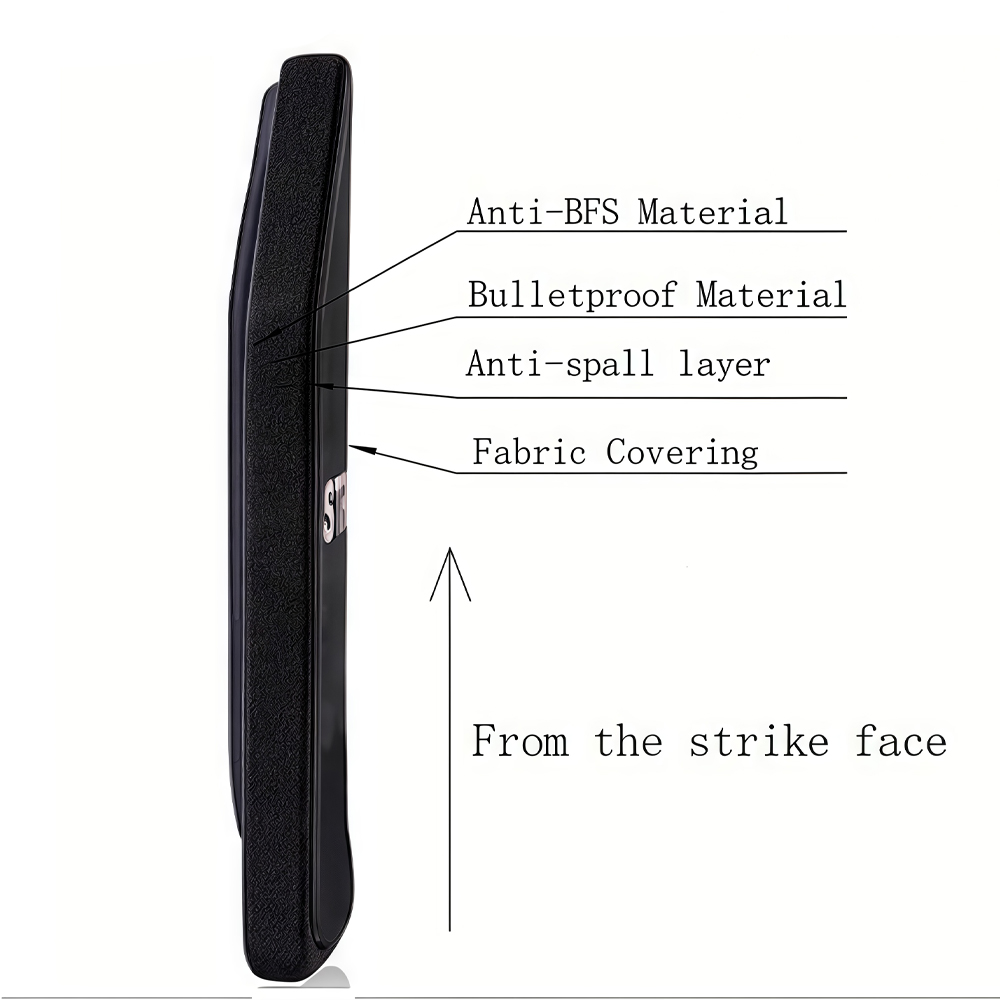

2. Triple-Layer Defense: SiC + HPPE + Anti-BFS
◦ Silicon Carbide (SiC) Ceramic: Ultra-hard (HV0.5 ≥ 2600) front layer shatters rifle bullet cores—even hardened projectiles that challenge standard ceramic plates.
◦ HPPE (High-Performance Polyethylene): Gel-spun fibers (15x stronger than steel by weight) absorb residual kinetic energy, preventing penetration and reinforcing structural integrity post-impact.
◦ Anti-BFS Material: Reduces backface deformation by 35% vs. non-enhanced plates, minimizing blunt trauma risk—critical for close-range (15m) high-energy impacts.
1. 2.13kg Balanced Weight for Mobility & Protection
Weighing 2.13±0.05kg per plate—strikes a rare balance between III+ protection and tactical agility. Lighter than most competing III+ plates (≈2.5kg) and 30% lighter than steel-based enhanced plates, it avoids fatigue during prolonged missions (e.g., 6+ hour building clears) while maintaining superior defense.
2. Single Curve + 600D Fabric: Universal Fit & Durability
Features a single curve contour compatible with 90% of standard tactical plate carriers (MOLLE, slick, low-profile models), conforming to upper torso shapes without custom adjustments. The outer 600D black Oxford fabric is waterproof (no seepage in heavy rain) and flame-retardant, with a 5-year warranty guaranteeing resistance to wear, moisture, and extreme temperatures (-30℃ to +50℃).
|
Category |
Specification |
Description |
|
Model Info |
Model Number: S-3T250300SA |
Advanced III+ ballistic plate; for elevated rifle threat scenarios |
|
Basic Specs |
Size: 250×300mm±2mm |
Standard 10×12 inch torso coverage; shields heart, lungs, and upper abdomen |
|
|
Thickness: 25±2mm |
Optimized for triple-layer defense—thinner than bulkier III+ plates (30+mm) |
|
|
Weight: 2.13±0.05kg |
Per plate; front+back setup totals ~4.26kg (lighter than a full combat load + standard III plate) |
|
Protection Core |
Material: Silicon Carbide + HPPE + Anti-BFS Material |
SiC = hard bullet fragmentation; HPPE = energy absorption; Anti-BFS = trauma reduction |
|
|
Ceramic Coverage: 225×275mm |
Vitals-focused hard protection; eliminates "edge weak spots" common in smaller ceramic zones |
|
|
Protection Level: NIJ 0101.06 Level III+ |
Exceeds standard Level III; enhanced resistance to high-velocity/ multiple rifle impacts |
|
Structural Details |
Curvature: Single Curve |
Conforms to upper torso arc; compatible with most body types (slim to medium builds) |
|
|
Outer Covering: 600D Black Oxford Fabric (Waterproof + Flame-Retardant) |
Matte black low-visibility finish; scratch-resistant (handles gear friction) and heat-resistant |
|
Test Performance |
Shooting Distance: 15M |
Complies with NIJ 0101.06 Level III+ test protocols (enhanced for multiple hits) |
|
Bullets Stopped |
7.62×51 M80 NATO; 7.62×39 AK47 MSC; 5.56×45 M193 |
Defends against mainstream + high-velocity rifle threats; tolerates near-consecutive hits |
|
Warranty |
Warranty Period: 5 Years |
Valid for normal tactical use (excludes damage from misuse: dropping >1.2m, crushing, chemical exposure) |
1. Step 1: SiC Ceramic Neutralizes High-Velocity Rounds
The silicon carbide ceramic layer’s ultra-high hardness (HV0.5 ≥ 2600) is engineered to shatter even slightly hardened rifle bullet cores (a limitation of standard Level III plates). When a 5.56×45mm M193 or 7.62×51mm M80 NATO round hits, the ceramic fractures the projectile into non-penetrating debris, preventing initial breakthrough.
2. Step 2: HPPE Reinforces & Absorbs Residual Energy
Behind the ceramic, HPPE fibers form a flexible yet robust barrier. Unlike standard plates, this layer’s dense gel-spun structure absorbs not just the bullet’s kinetic energy, but also disperses force from ceramic fragments—reducing stress on the plate and enabling it to withstand multiple near-hits (a key III+ advantage).
3. Step 3: Anti-BFS Material Minimizes Trauma
Integrated Anti-BFS (Backface Signature) technology limits backface deformation to <40mm (below NIJ III+’s 44mm maximum), far less than non-enhanced plates. This reduces the risk of rib bruising, internal injury, or mobility loss after impact—critical for maintaining tactical capability mid-mission.
4. III+ Advantage Over Standard Level III
While standard Level III plates stop specified rounds once, Level III+ plates like the S-3T250300SA offer improved durability against multiple impacts and better performance against "edge hits" (bullets striking near the plate’s perimeter)—a common vulnerability in high-pressure engagements.
|
User/Scenario |
Core Value |
Usage Suggestions |
|
SWAT Counter-Terrorism Teams |
III+ protection = stops high-velocity rounds; Anti-BFS = reduces trauma |
Use in CQB plate carriers for hostage rescues or active shooter responses (e.g., urban building raids) |
|
Military Border Security |
Single curve = universal fit; 2.13kg = mobility |
Pair with combat plate carriers for patrols facing AK47/M16-equipped threats (e.g., remote border zones) |
|
High-Risk Executive Security |
Low-profile design = discreet; III+ = enhanced defense |
Wear in low-visibility carriers for VIP transport in high-threat regions (e.g., conflict-adjacent areas) |
|
Tactical Training Units |
Triple-layer durability = repeated use; III+ = realistic drills |
Integrate into advanced rifle protection training (simulates high-velocity/ multiple-hit scenarios) |
1. Silicon Carbide Care
Avoid dropping the plate from >1.2m—SiC ceramic may develop hidden cracks (invisible to the eye) that reduce III+ protection. If dropped, tap the plate gently; a "hollow" sound indicates internal damage—discontinue use and contact the manufacturer.
2. Storage & Environmental Protection
Store in a dry, cool area (relative humidity ≤ 75%); avoid direct sunlight (UV degrades HPPE) or temperatures above 50℃ (softens fibers). Do not stack heavy objects (e.g., gear bags) on the plate—this may warp the single curve and compromise fit.
3. Fabric & Maintenance
Clean the 600D outer fabric with mild soap and water only—avoid harsh detergents or bleach (they break down waterproof/flame-retardant coatings). Inspect the fabric monthly for tears; exposed ceramic/HPPE layers reduce protection.
4. Warranty Compliance
Do not cut, drill, or modify the plate—this breaks the ceramic/HPPE integrity and voids the 5-year warranty. Avoid contact with strong acids/solvents (they degrade Anti-BFS material and internal layers). After stopping a rifle round, replace the plate immediately (III+ protection is compromised post-impact).
