Payment Terms :
L/C, T/TSupply Ability :
500 units/mouthPlace of Origin :
ChinaBrand Name :
CXXMModel Number :
CXXM 5254MOQ :
1 unitDelivery Time :
45 daysTechnical Proposal of CXXM5254Water Cannon Vehicle

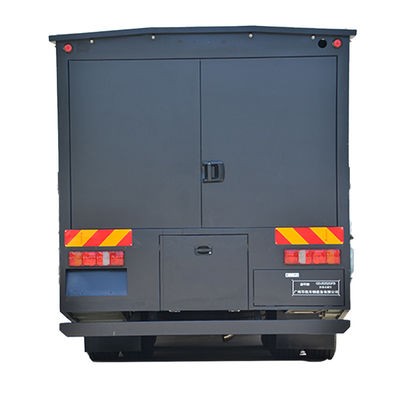

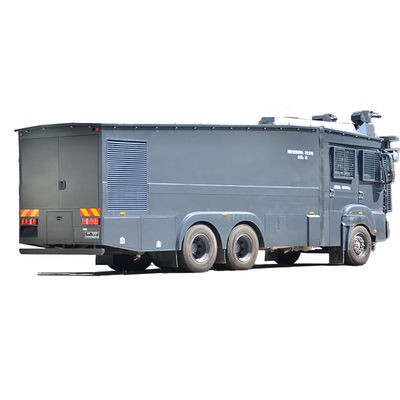

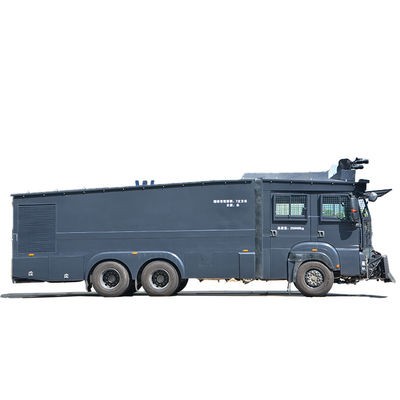

Part I Overview of the vehicle

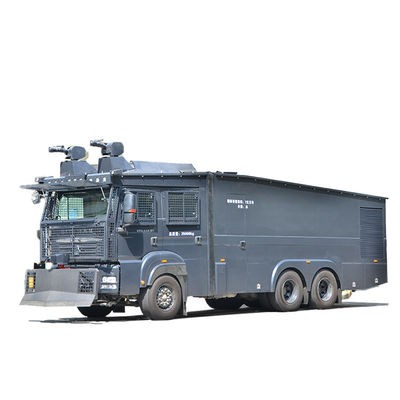

CXXM5254water cannon vehicle is modified on the chassis of the double row cab of heavy auto Haowo. The body is vertically smooth around the body to prevent personnel from climbing. The zigzag protective net made of high-strength steel installed on the glass of the whole vehicle has excellent anti-smashing ability. The two-seat cab design allows for 2+4 combat members, and all riot control operations are carried out in the vehicle. The water cannon vehicle is equipped with three electric high-pressure water cannons, and the two main cannons on the top of the pump room have DC and point functions, which can spray high-pressure water, dyeing water and gas water for long-distance flooding. The front secondary cannons have DC and blooming functions, which can spray clean water and foam mixed liquid for short-distance flooding and fire fighting in front of the vehicle. The pump is driven by the rear engine and can be used by three water cannons at the same time without any impact on chassis handling. The vehicle is suitable for law enforcement departments to deal with large-scale illegal demonstrations, using water cannons to shock rioters and deal with mass disturbances without causing direct harm.
Part II Function and specifications of the vehicle
I. Chassis specifications
| Chassis type | ZZ1257V4347B1(Haowo) |
| Number of cab and crew | Double row cab, 2+4 people |
| Gross mass | 25000kg |
| Designed for maximum total mass | 28000kg |
| wheelbase | 4325+1350mm |
| Driving mode | 6×4 rear axle drive |
| Engine type | WP12.400E201 in-line 6-cylinder diesel engine, turbocharged and intercooled |
| Displacement | 11596ml |
| Engine power | 294kW |
| Emission standard | National standard II diesel |
| Tank volume | 400L |
II, Vehicle specifications
| Main vehicle specifications | Product name | water cannon vehicle |
| Vehicle model | GDJ5254GFB2 | |
| length/width/ height | 10600×2550×3900mm | |
| Wheelbase | 4325+1350mm | |
| Number of cab and crew | Double row cab, 2+4 staff | |
| Maximum speed | 90km/h | |
| Maximum climbing capacity | 纵å¡18% Longitudinal slope 18% |
|
| Maximum wading height | 400mm | |
| Minimum turning radius | 10m |
III. Introduction of tactical specification and component functions
Functional classification |
Device name | QTY | Technical specification |
| Chassis modificatio | Cab layout |
1 set |
Double row cab, 2+4 people, one captain(commander) and one driver, two operators and two workers. The front control platform is installed in the middle of the front row of the cab, and the rear control platform is installed in front of the rear seat. All the instruments and operating systems of the vehicle are rationally distributed in the cab according to the combat programming. Including liquid level display system, pump-extractor operating system, water cannon PLC operating system, water cannon shooting auxiliary recording system, fire fighting and vehicle self-protection system, alarm system, lighting auxiliary system, push shovel operation switch, etc |
Riot protection |
1 set |

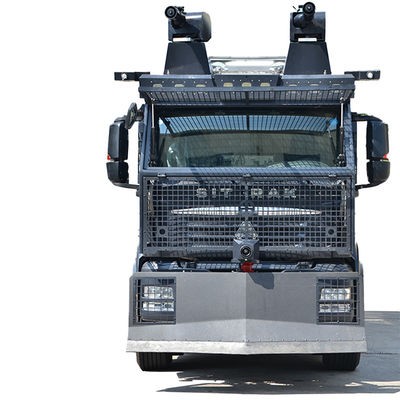

All the glass of the cab is equipped with anti-climbing high-strength serrated anti-riot mesh made of high-strength manganese steel laser cutting. The anti-riot mesh of the front windshield is controlled by a hydraulic cylinder, and two sliding anti-riot mesh are installed on the side window of the cab, which can only be opened or locked by sliding from the inside of the cab, meeting the requirements of the team members to operate the anti-riot cannon. When the rear door and window riot net is opened, it allows the staff of 90kg weight and 1.8m height to escape. | |
Anti-climbing |
1 set |
The surface around the vehicle body (including the cab) is smooth, there is no handrail, when the cab and pump door is closed the vehicle pedal should be covered. The door and window riot nets and front guard nets are equipped with anti-climbing spikes. | |
| Cab air conditioning | 1 set |
Double row cab space is large, the original chassis front air conditioning refrigeration effect is not ideal, add one set of air conditioning system,with cooling capacity: 5000W, 24V |
|
| Sub-frame assembly | Sub-frame assembly | 1 set | The sub-frame assembly is composed of a through type sub-frame and 24 elastic support seats (spring assembly + conical vulcanized rubber). The sub-frame is rigidly connected to the chassis girder, and the sub-frame is flexibly connected to the coach through 12 elastic support seats on each side. Different from the rigid connection between the top and the chassis of the ordinary water cannon vehicle, the elastic connection can effectively reduce the excessive stress concentration on the top structure caused by the inertia force generated by the vehicle turbulence, sudden braking, and sharp turns |
| water system | Main cannon |
2 pieces |
(1) The water cannon is composed of an aluminum alloy precision cast cannon body and a DC cannon head, and the horizontal and pitching rotation is driven by a motor. |
| Secondary cannon |
1 piece |
(1) The water cannon is composed of an aluminum alloy precision cast cannon body and a DC and open fireworks head, and the horizontal and pitching rotation is driven by a motor. |
|
| Water pump | 1 set |
(1) The water pump is composed of a gear box, a piston priming pump and a centrifugal pump. The water pump is cast aluminum pump housing and driven by the chassis full power sandwich force extractor (PTO); |
|
| Auxiliary engine unit | 1 set |
(1) The auxiliary engine unit is composed of engine assembly, intake and exhaust system, cooling system, fuel filtration system and circuit control system; |
|
| Pitcher |
1 PC |
(1) It is made of304 stainless steel plate, the inner wall is sprayed with Marine epoxy zinc-rich waterproof paint, and the water tank is equipped with anti-wave partition device to buffer the front and back impact of water when the vehicle is moving; |
|
| Additive tank | 3 piece |
(1) The additive tank is made of 304 stainless steel; |
|
| Proportion mixer |
1 Set |
(1) Main cannon dyeing agent, gas proportion mixer 1, negative pressure type, mixing ratio 3%; |
|
| Valve | 1 Set | Stainless steel valve, excellent anti-corrosion performance, flexible switch, stuck will not occur even after long time parking |
|
| Self extinguishing sprinkler system | 1 Set | A total of 15 sprinkler heads are set up on the roof and bottom the vehicle, which can spray water or foam mixed solution to achieve self-fire protection | |
| Antifreeze drainage system | 1 Set | An electronic control anti-freezing water discharge device is installed at the lowest part of the pipe to prevent system damage caused by freezing of residual pipe water in cold weather | |
| Push shovel | Hydraulic push shovel |
|
(1) The hydraulic obstacle clearing shovel in front of the vehicle is composed of V-type obstacle clearing shovel, four-link structure, hydraulic pump station, oil cylinder and hydraulic pipeline; |
| Image monitoring system | Camera | 1 Set |
Waterproof infrared camera, resolution is not less than 1080P, the camera rotates with the cannon barrel, support variable times; fill light distance: 50m, horizontal range: 360°, vertical range: vertical -40°~30 |
| Hard disk video recorder | 1 Set |
The vehicle 4-channel hard disk video recorder has 2T hard disk, embedded Linux operating system, video compression standard H.264, it supports TV/VGA/HDMI video output at the same time |
|
| Monitoring display | 2 Set | Real-time high definition display monitoring screen, display size 13.3 inches | |
| Lighting device | Main cannon follow-up light |
2 piece |
Rotate with the barrel, LED light, white light, spotlight 100 meters |
| Auxiliary front light |
2 piece |
LED strong light, white light |
|
| Alert safety system | Circular roof warning light |
4 åª 4 piece |
Cylindrical flash warning light, red and blue: 2 for each, installed around the vehicle, LED light source; |
| Broadcast alarm |
|
(1) The broadcast alarm consists of two broadcast speakers, an alarm host and a loudspeaker; two broadcast speakers are mounted on the top of the cab, and the alarm host and loudspeaker are installed in the cab; |
|
| Auxiliary system | Reverse monitoring system |
1 set |
The vehicle is equipped with a special reversing camera and reversing radar in the rear, supporting the reversing display screen, the display size is 7 inches; |
