14000L 6X4 Model Turbojet Anti-Riot Water Cannon Vehicle/ 6X6 Model Mercedes-Benz Complete Self-Protection System Customized Turbo Jet Anti-Riot Water Truck

14000L 6X4 Model Turbojet Anti-Riot Water Cannon Vehicle/ 6X6 Model Mercedes-Benz Complete Self-Protection System Customized Turbo Jet Anti-Riot Water Truck

Payment Terms :
L/C, T/T
Supply Ability :
100 Per Month
Price :
1-9 Sets / US $330,000 | 10-49 Sets / US $320,000 | 50+ Sets / US $300,000

Inquiry now

product introduction

Specifications

Model NO.: CX21LYX04122

Max. Total Mass: 25000

Capacity Of Water Tank: 10

Trademark: CXXM

Specification: 8760 X 2496 X 3833

Origin: China

Port: Xiamen, China

Chassis Model: HOWO

Engine Model: Wd615.87

Displacement L: 9.726

Max. Speed: 102

Driving Mode: 6X4

Carrying Capacity Of Cabin: 4

Product Description Customer Question & Answer

Ask something for more details

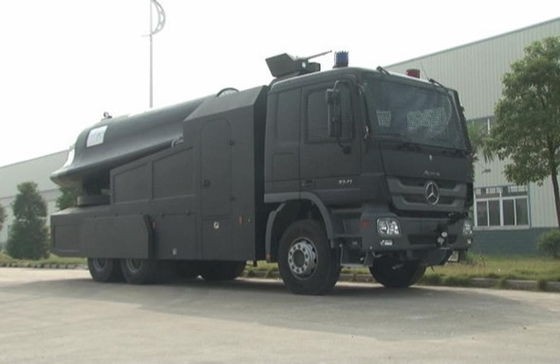

CX5270GXF60WP Turbo Jet Anti-riot Vehicle

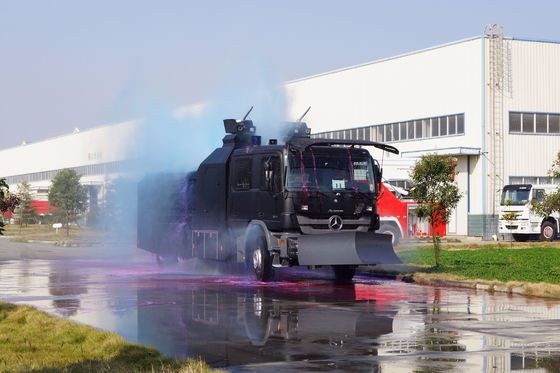

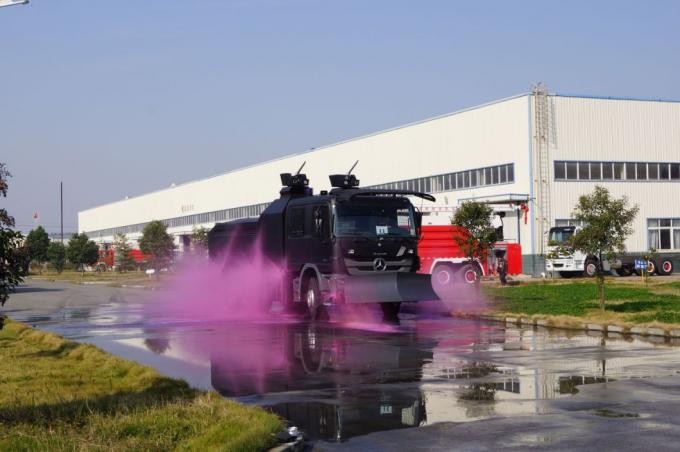

CX5270GXF60WP turbo jet Anti-riot vehicle is developed by CXXM Company. It is a new generation of riot gear, uses the Mercedes-Benz Actros 6x4 3341 type II chassis,the spray power comes from the aviation turbine jet engines from the high-speed airflow, with normal hydraulic system of anti-riot cannon vehicle, it can spray high-speed airflow, clear water, pepper water and so on, have the big range flooding disperse ability.
Its main features are as following:
Making use of high temperature, high speed wind or water mist dispelling violent people.
It could be added pepper water to dispel unrest group.
It can use high-speed winds and high temperature flooding snow, fog and clear the barriers, make airports and highways clear.

14000L 6X4 Model Turbojet Anti-Riot Water Cannon Vehicle/ 6X6 Model Mercedes-Benz Complete Self-Protection System Customized Turbo Jet Anti-Riot Water Truck

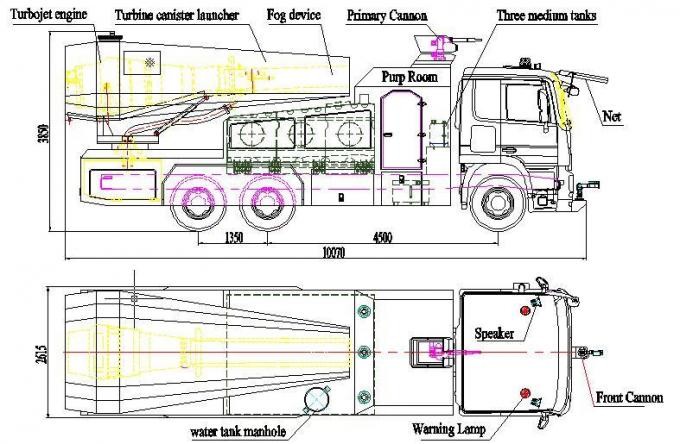

3 main configuration and technical parameter:

Item		performance parameter	Item		performance parameter
Lengthwidthheight(mm)		10070×2615×3850	Roof cannon	Flow	≥30L/S
Chassis model		Mercedes-Benz Actros 3341		Max. reach	60m
Max. total mass(Kg)		26000		Deterrent reach	38m
Wheelbase (mm)		4500+1350	Front cannon	Flow	20L/S
Chassis fuel tank capacity(L)		300		Max. reach	50m
crew		3		10m length cover of snokeweed	100m²
Min. turning diameter(m)		19.8		Type	DC spray and fog spray
Max. speed(km/h)		100	Turbine jet system	Turbine jet power	≥5000kw
Approach angle/departure angle(°)		15/12		Jet speed	≥500m/s
vehicle engine	Model	Benz OM501 LA./3		Jet reach	≥80m
	Emission	EURO		Cover area	350
	Type	Six cylinder in-line, turbocharged		Turbine jet cannon flow(L/h)	>210000
	Displacement(L)	11.946		Pitching angle(°)	-5~30
	Power rating (Kw/rpm)	300/1800		Rotation angle(°)	0~360
	Max. torque (N.m/rpm)	2000/1080		Turbine jet fuel tank(L)	1600

4  Main configuration and function
4.1water tank:6,000 liters;Pepper water tank:100 liters,dye tank :100L, foam tank:100L.
4.2Cannon:One electric straight stream anti-riot water cannon, max. reach is 60m, deterrent reach is 38m; It can dispel long-distance rioters.
4.3 Filling port:Two DN65 filling port is on both side of the vehicle;
4.4 Military gas mask: 3 sets.
4.5 Centralized control system:All equipments are controlled and operated in the cab, the control system is mounted in the electric control box in pumping room.
4.6 Video Rearview system:Back guide screen is loaded.
4.7 Alarm light:Cylindrical red and blue flash warning lamps are installed on the front top of the vehicle with 300W siren.
4.8 Broadcast publicity system:It is composed of one CD player and control system. Power amplifier, speaker and microphone are shared with warning system.
4.9 Image monitoring system:Video camera is mounted on the emplacement of water cannons. Reversible LCD is mounted inside the cab to facilitate operation and on-site supervision. Hard-disk recorder stores images.
4.10 Lighting protection:Strengthened stainless steel protective net is for the lights.
4.11 Turbine jet system: It is mainly made up of turbojet engine , turbine canister launcher and the control system, it can spray the high-speed airflow.
5 Genealogical classification:
5.1. Chassis
Use fire truck special chassis;escape skylight on vehicle roof, 11 units tires(1 spare tire); the weight of chassis is 9.045 ton. Max. total mass is 26 ton, It could carry 6 ton water.
Model:                           Mercedes-Benz Actros 3341
Manufacturer:                      Benz Company
Drive type :                         6×4
Wheel base(mm):                   4500+1350
Engine:

Engine model	Benz OM501 LA./3
Emission Standard	Euro
Engine Type	In-line,Six cylinder,inter-cooling
Displacement(L)	11.946
Power rating (KW/rpm)	300/1800
Max. torque (N.m/rpm)	2000/1080

5.2Water tank capacity:6000L
Steel-welded, with anti-swing plates inside;
One φ450mm manhole, with quick lock and open device;
One air vent on the roof;
One fluid level gauge;
One DN50 ball valve controlled outfall at the bottom.

5.3 Water cannon:One electric straight stream anti-riot water cannon
Max. Reach:60m
Deterrent reach:38m
Shooting type:Continuous shooting and burst shooting.
Shooting medium:pepper water, water.
Control:electric control
Water cannon has the function of Continuous shooting and burst shooting. The pepper water solution can disperse the long-ranged crowd. Its performance takes the leading role in the same international industry.
The emplacement of cannon installs light to achieve striking riots precisely.
5.4 The front riot water cannon: Flowering and DC amphibious cannon, maximum range of  50m.

5.5 Pump: Use domestic high quality, big flow centrifugal pump. The shell is high-strength aluminum alloy. The pump has high revolving speed, high efficiency and lightweight features.
Model: CB12/80, through severe test, ensure the performance of cannon.
The water system is driven by PTO.
5.6 Electro-magnetic induction level gauge: The level gauge which is made of high chromium stainless steel is developed by Haomiao Company, Compared with the common liquid level gauge used by general industry ,our product has the corrosion resistance, high precision, quick response and good reliability.
5.7 Additive tank: There will be 3 stainless steel tanks for dye, pepper water and Class B foam. And the pepper tank have the automatic sealing switch to ensure that the mixture does not valatilize.
5.8 Cannon control panel: The continuation and intermittent shooting of each cannon is operated on the panel.
The panel is installed in the cab ,operated by the vice-driver.
The handle of the cannons are set on the panel. Through the handles, the operator can accurately control the launch angle of the water cannon to ensure accurate riots striking.
Water pressure and liquid level are shown the working condition of the water system on the control panel.
5.9 Glass and light protection net: The warning lights, the lighting in the front and at the back,the glass are protected by steel net. The net is high strength, shock resistance, anti transformation.
5.10 Military gas mask: 3 sets.
5.11 Turbine jet system
5.11.1 Turbojet engine Model:WP-5
   Type: Turbine jet
Compressor: Two-sided air suction single stage centrifugal
Impeller: About 29 pieces
QTY of combustor and type: 9, direct burning
Time from 2500r/min to 9000r/min(s):Not more than 25s
Temperature while acceleration(ºC):Not more than 800ºC
Turbojet engine is started by hydraulic motor.
Plus gasoline ignitor to ensure successful ignition in cold area and in winter
5.11.2 Turbojet oil supply system
Fuel tank capacity:1600L (normal diesel)
Time of supplying energy for turbine engine≥40 min
Position:It is installed at the rear of two sides of the vehicle.
5.11.3 Turbine canister launcher
This equipment is putting water, pepper water or other agent out through the high speed
air flow of turbojet engine to be fog, also is the shooting equipment of tubine jet system.
Its rear connect with shooting port of engine. Water,  pepper water  enter the lower port,
shoot as fog from shooting port, to clean the scene.
5.11.4 Hydraulic system
The vehicle equips a set of additional hydraulic system. Power transmission from the side window of gear box, it is composed of the oil pump, hydraulic motor and oil cylinder, all kinds of valve and pipeline. The main function is to start of the turbojet engine, and control turbine jet system of pitching and rotating.
5.12 Other:
5.12.1 Video Rearview system:7" screen is loaded.

5.12.2 Image monitoring system: It is made up of camera, camera cover, screen, hard disk VCR mounted on the vehicle.
