Payment Terms :
L/C, T/TSupply Ability :
5000 units/mouthPlace of Origin :
ChinaBrand Name :
China xinxingMOQ :
1Delivery Time :
30 dayProduct Introduction
PVS-7 binocular night vision adopts the GEN2+ low light image intensifier. It has four working
modes: OFF/ON/IR/AT. Binocular pupil distance adjustment function, and low battery indicator
function.

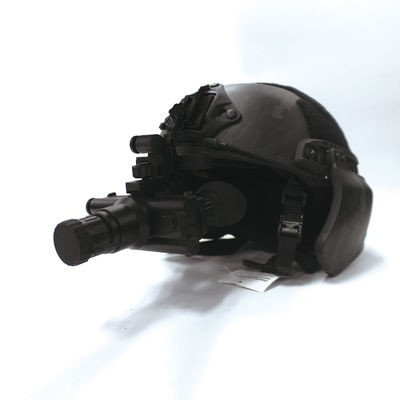

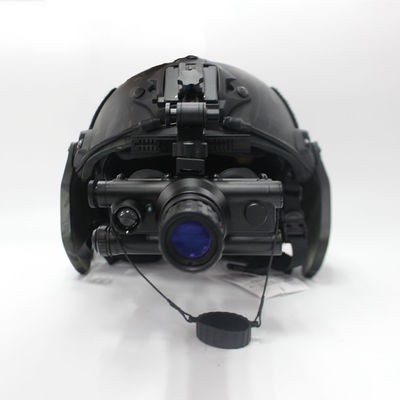

The main components are made of aluminum-magnesium alloy. They are small in size and light in
weight. They can be used by hand or connected to a tactical helmet. A 3× telescope can be directly
screwed on without removing the original 1× lens
| Image Intensifier | GEN2+ | Battery Type | AA battery | |
| Resolution | 64～72 lp/mm | Operating voltage | 2.4~4.2V |
|
| Sensitivity | 500～550μA/lm | Battery life | 36h(IR ON)/ 72h(IR OFF) |
|
| Signal-to-Noise Ratio | 17～21 | Auxiliary light source |
1.2W LED IR850nm |
|
| Visual magnification | 1× | Strong light protection |
AUTO |
|
| Field of view | 42° ( ±2°) | Protection level |
IP67 |
|
| Magnifier | 2×/3×/5×( Optional) | Operating temperature |
-50℃ ~ +50℃ |
|
| Diopter | -5SD～+5SD | Operating humidity |
5%RH～98%RH |
|
| Focus range | 0.25m ~ ∞ | Working life | > 10000h |
|
| Night vision distance (I= 10-1lx) |
280m(personnel 1.7m×0.5m) | Size Weight |
133×130×58mm | |
500m(vehicle 4.6m×2.3m) |
450g | |||
