White Armoured Ambulance for Emergency Response, powered by a Cummins ISDE180-30 engine, with 6,500 kg GVW, 10-person capacity, and a maximum speed of 105 km/h.
Payment Terms :
L/C, T/TPrice :
1-4 Pieces / US $29,999 | 5-9 Pieces / US $28,999 | 10+ Pieces / US $27,999
Configuration of Vehicle
|
Engine |
|
|
Model |
CUMMINS ISDE180-30 |
|
Max. power |
132KW 180HP |
|
Type |
Electric injection, turbocharged, intercooled diesel, Bosch common rail system |
|
Fuel |
Diesel |
|
Displacement |
4.5 L |
|
Size |
|
|
Outside size(L/W/H) |
5360mm/2320mm/2300mm |
|
Interior volume |
8 m³ |
|
Wheelbase |
3310mm |
|
Front tread/Rear tread |
1780mm/1780mm |
|
Min. Ground clearance |
300mm |
|
Tire size |
37×12.5R16.5 |
|
Weight |
|
|
GVW |
6500kg |
|
Complete vehicle curb mass |
5300kg |
|
Loading mass |
1200kg |
|
Performance |
|
|
Max. speed |
105km/h |
|
Max. torque |
650/1200-1700 N.M |
|
Biggest continue voyage course |
600km |
|
Fuel tank capacity |
120L |
|
Passenger |
2+2 |
|
Max. gradeability |
60% |
|
Max. Fording depth |
800mm |
|
Barrier property |
|
|
Front, side and back |
It can withstand the type 53 7.62mm standard bullet at a distance of 100 meters |
|
Medical equipment and accessories |
|
|

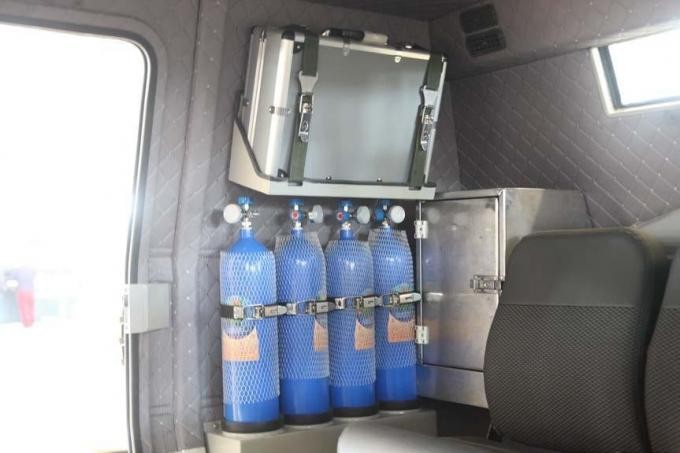

1.Alarm lights: 4units 2.300w siren: 1unit 3. MOTOROLA 400mb ultrashort wave: 1unit 4. Search lights: 1unit 5. Emergency and transport Ventilator: 1unit 6. Defibrillator monitor: 1unit 7. Oxygen tanks: 2units 8. First aid cabinet: 1unit 9. Stationary stretcher: 2units 10. Air conditioner : 1unit 11. Ventilating fan : 1unit 12. Internal lighting : 2units 13. Fire extinguishers : 2units 14. On-board tools: 1unit |
|

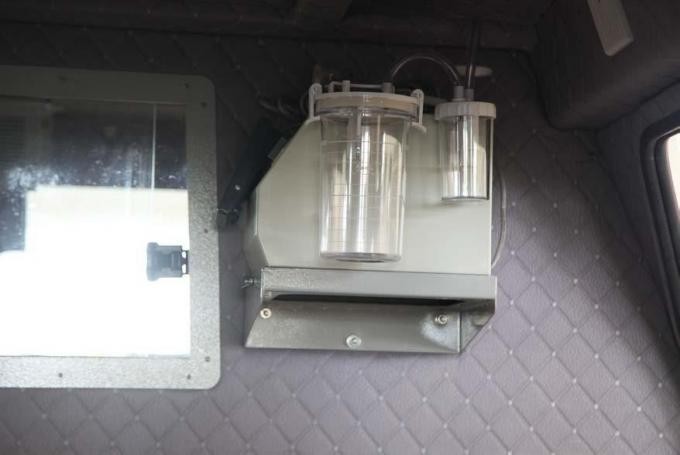

1) Suction unit
2) Manual resuscitator (Silicone material)
3) Fingertip pulse oximeter
4) Spine board
5) Head immobilizer
6) Splint kit
7) Nebulizer
8) Glucometer
9) Thermometer
10) Digital blood pressure monitor
11) Infusion pump

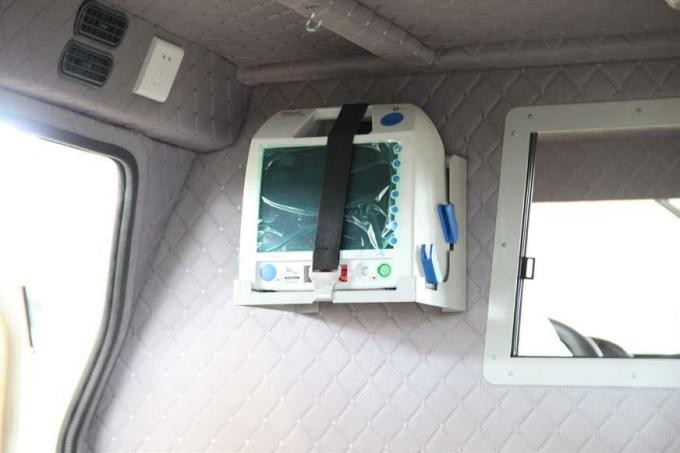

12) Patient monitor
13) Medical Refrigerator (30L)
14) Cervical collar
15) Intubation equipmentCervical collar
16) Comprehensive First-aid kit
17) Trauma first aid kit
18) Digital VHF radio
19) VHF Intercom system
20) Public Address (PA) system

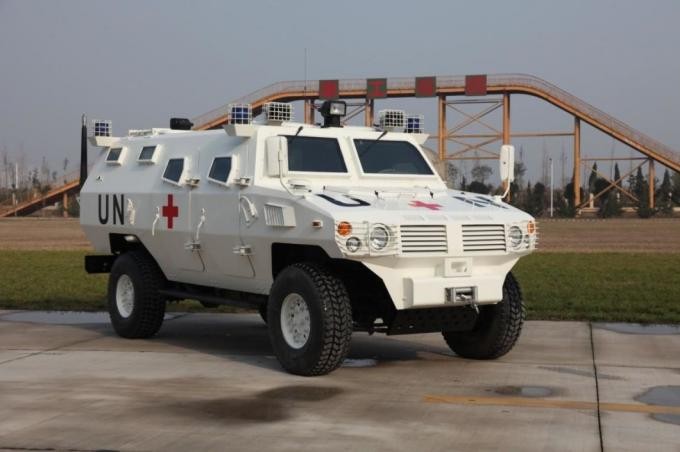

The White Armoured Ambulance is designed for emergency response and professional transportation applications where an armoured ambulance platform is required.
With a 10-person passenger capacity, 6,500 kg GVW, and a stated maximum speed of 105 km/h, the vehicle provides a practical configuration for organizations planning emergency-response or specialized ambulance fleets.
The ambulance is equipped with a Cummins ISDE180-30 engine, providing the specified powertrain configuration for this emergency vehicle.
The vehicle is specified to accommodate 10 passengers, making it suitable for emergency-response teams and group transportation requirements.
The exact interior layout, number of medical staff positions, patient capacity, stretcher configuration, medical equipment, and interior fittings were not provided and should be confirmed according to the required ambulance configuration.
The product is identified as an armoured ambulance, making it suitable for specialized emergency-response programs where an armoured vehicle platform is required.
However, the supplied specifications do not include a specific ballistic protection level, armor material, ballistic test standard, blast protection rating, or certification. These details should be confirmed with the manufacturer before procurement.
The vehicle is specified as RHD (Right-Hand Drive), making it a potential option for markets and fleet programs requiring right-hand-drive vehicles.
Depending on the final vehicle configuration and local regulations, the White Armoured Ambulance can be considered for:
The vehicle is manufactured in China, with Xiamen, China listed as the export port. The specified transport package is standard export packing.
For international procurement, buyers should verify local requirements covering vehicle registration, ambulance equipment, medical-vehicle regulations, right-hand-drive requirements, emissions, roadworthiness, and armoured vehicle certification.
The product information provided identifies this vehicle as an armoured ambulance, but no detailed armor or medical-equipment specifications were supplied.
For procurement, confirm the following according to project requirements:
No unprovided specifications are claimed in this product description.
Q1: What type of vehicle is this?
It is a White Armoured Ambulance designed for emergency-response applications.
Q2: Is this ambulance RHD?
Yes. The supplied specification identifies it as RHD (Right-Hand Drive).
Q3: What engine does the ambulance use?
The specified engine is Cummins ISDE180-30.
Q4: How many passengers can it accommodate?
The specified passenger capacity is 10.
Q5: What is the GVW?
The gross vehicle weight is 6,500 kg.
Q6: What is the maximum speed?
The stated maximum speed is 105 km/h.
Q7: What are the dimensions of the vehicle?
The overall dimensions are 5,360 × 2,320 × 2,300 mm.
Q8: What color is the ambulance?
The specified exterior color is White.
Q9: Is this a ballistic-protected ambulance?
The product is identified as an armoured ambulance, but no specific ballistic protection level or certification was supplied. Buyers should request the applicable armor specifications and test documentation.
Q10: Where is the vehicle manufactured?
The listed origin is China, with Xiamen, China specified as the export port.
Q11: Is medical equipment included?
No specific medical equipment configuration was provided. Equipment, stretcher arrangements, and interior medical fittings should be confirmed with the manufacturer.
