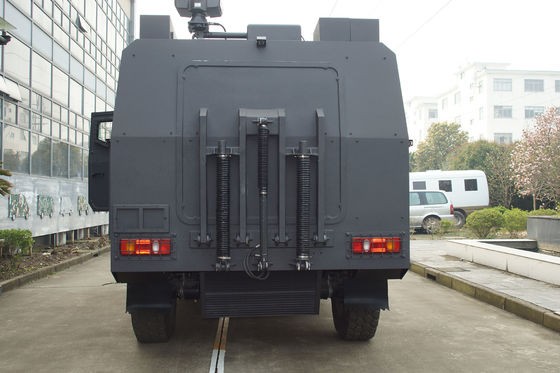

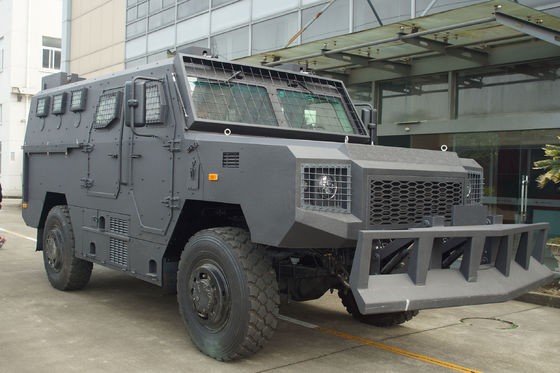

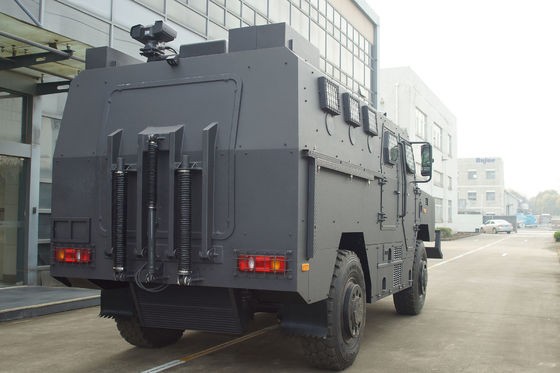

Military Bulletproof Antiriot Soldier Car Army Vehicle
NR3 anti-riot vehicle is based on 4X4 military chassis,6.7L ISDe245-30 Cummins engine, Allision automatic transmission, with a payload up to 2 tons. It can rapidly upgrade to NATO STANAG 3 on the base of STANAG 1 body armor, to withstand 7.62 AP bullet and 60 mm mortars fragments. The floor can be improved to STANAG 2 to resist against 6kg anti-tank mines by additional Anti-Shock upgrading system.
NR3 anti-riot vehicle has excellent urban counter-terrorism capabilities,such as denfense and strike , communication and
command , personnel transport,obstacle removal and other specific operations.
NR3 anti-riot vehicle can be equipped with closed/semi-closed turret, 12.7 heavy machine gun, 38mm anti-riot launcher, obstacle-breaching system, body fire extinguishing system,acoustic dispersion system, communication and command system, 360 rotation and real-time image transmission system as per specific mission requirements.
| Traction | 4×4 |
| Seating Capacity | 10-12 |
| Gross vehicle weight (kgs) | 12500 |
| Payload (kgs) | 2000 |
| Tire | 365/85R20 |
| Dimension Lx Wx H (mm) | 6270x2340x2700 |
| Engine Type | 6.7L Turbo Diesel |
| Max Power (Kw/rpm) | 180/2500 |
| Mas Torque (N.m/rpm) | 925/1400 |
| Max Road Speed (km/h) | 105km/h |
| Max Endurance Mileage (km) | 1000km |
| Gradeability | 60% |
| Max Roll Angle | 40% |
| Ground Clearance (mm) | 350mm |
| Max Fording Depth (mm) | 750mm |
|
Vertical Obstacle Surmounting Hight (mm) |
450mm |
| Trench Crossing Width (mm) | 650mm |
3+9Seats :1xDriver, 2xCo-pilots,1xGunner,8xSoldiers
