CXXM0H4090 Electric multi-purpose industrial-grade quad-rotor drone

CXXM0H4090 electric multi-purpose industrial-grade quad-rotor drone, covering a variety of scenarios and industry applications, front open mounting, covering short-range laser radar, tilt photography five-lens, orthographic gimbal camera, optical pod, megaphone, searchlight and other drone payloads. Modular design, one-click replacement of various payloads, adapting to a variety of operating modes. Adopting a foldable X-shaped quad-rotor structure, the flight attitude is stable, the safety is high, and the flight time is long. Carbon fiber one-piece molding fuselage, good aerodynamics, high strength and light weight.

Technical features

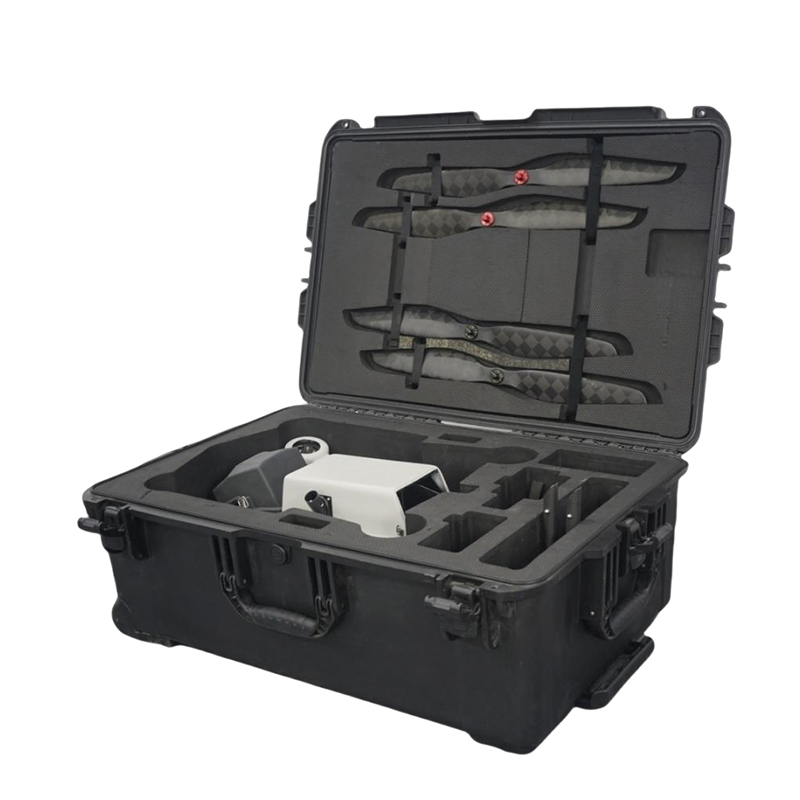

Folding arms, waterproof, single-soldier backpack



Recommended scenarios

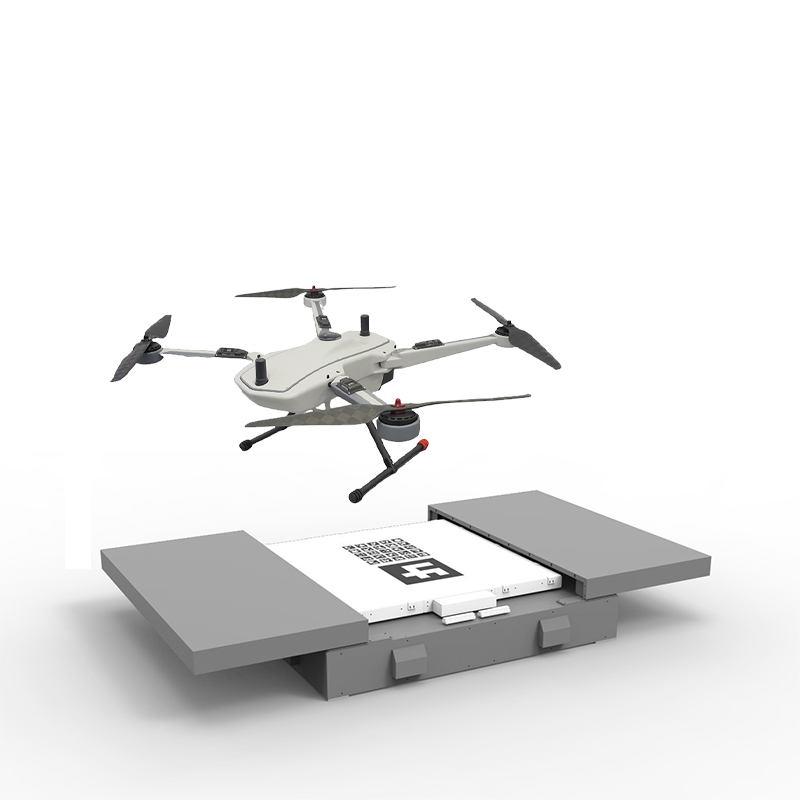

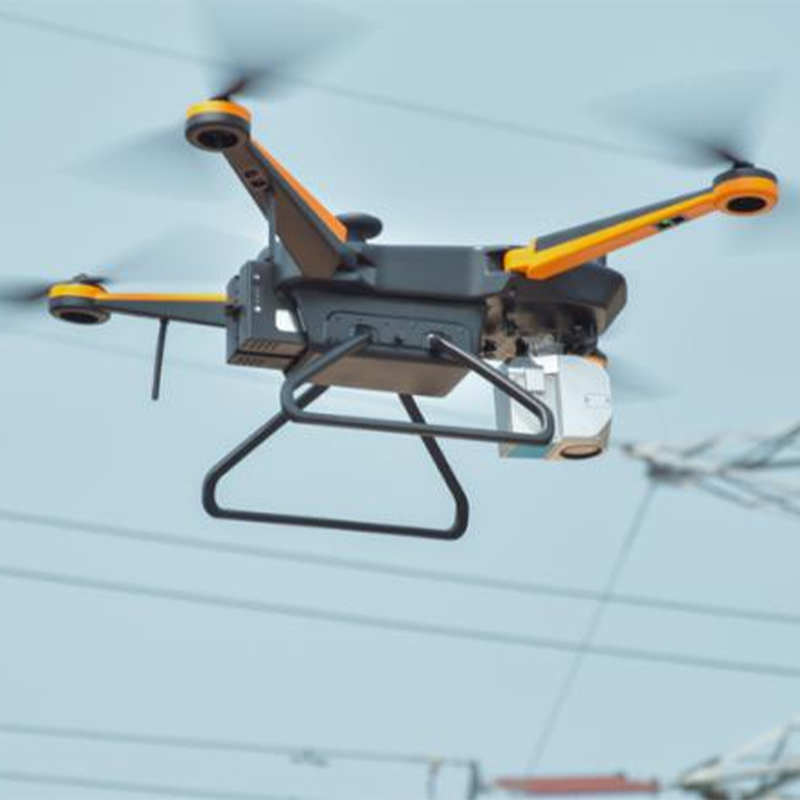

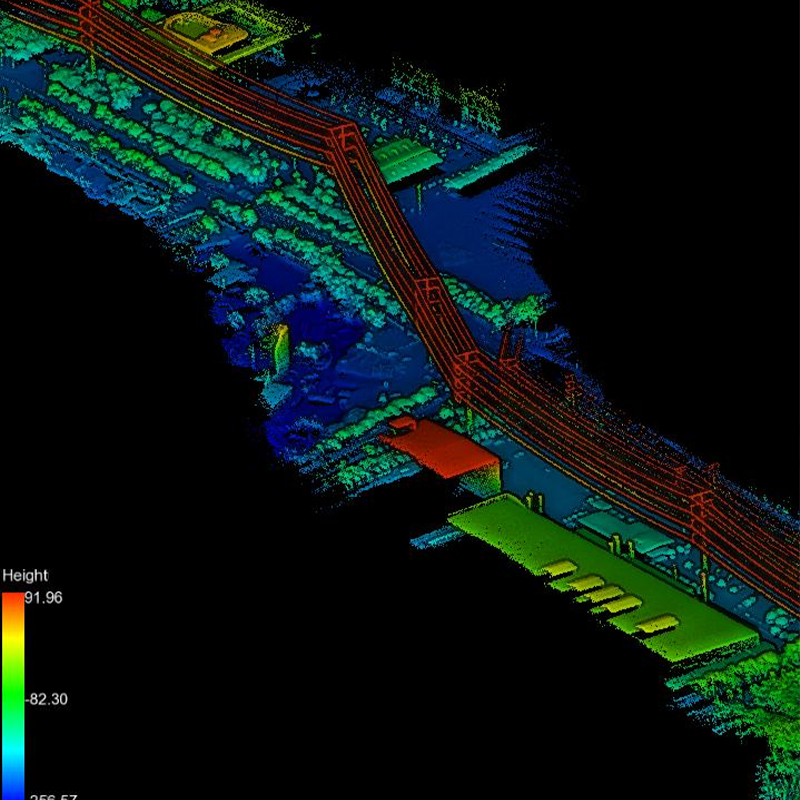

Automatic nest, geographic surveying, power inspection



System Parameters

Dimensions  980×980×330mm Wheelbase 950mm
Standard load  1.5kg Standard endurance >50min
Maximum load 3kg Maximum endurance >65min
Flight speed 0~20m/s Maximum ceiling 5000m
Maximum take-off weight 10kg Maximum wind resistance 12m/s
Battery 6S 22.8V 16000mAh*2 Differential mode RTK/PPK
Operating temperature -20~45℃ Packing box size 780×570×260mm
