Anti Riot Vehicle/Army Anti-Riot Wheeled Police Armoured Truck/4X4 Military Chassis Nr3 Anti Riot Truck

  • Payment Terms :

    L/C, T/T
  • Supply Ability :

    100 Per Month
  • Price :

    1-9 Vehicle / US $250,000 | 10-49 Vehicle / US $245,000 | 50+ Vehicle / US $238,000
Specifications
Model NO.: CX21LYX0507
Max Power (Kw/Rpm): 180/2500
Trademark: CXXM
Specification: 6270x2340x2700
Origin: China
Port: Xiamen, China
Driving Mode: 4X4
Seating Capacity: 10-12
Gross Vehicle Weight (Kgs): 12500
Payload (Kgs): 2000
Tire: 365/85r20
Engine Type: 6.7L Turbo Diesel
Product Description Customer Question & Answer
Ask something for more details

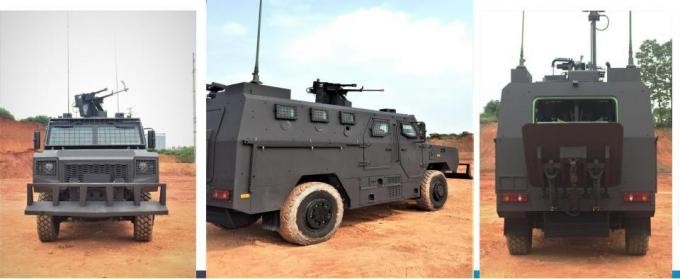

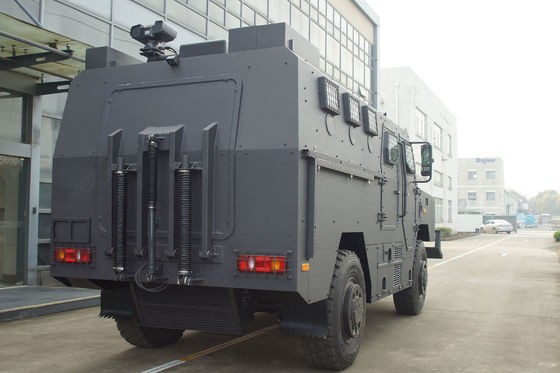

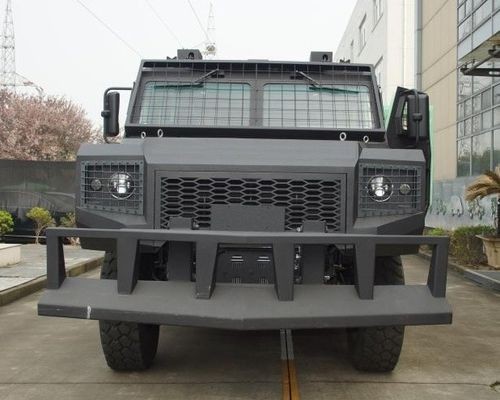

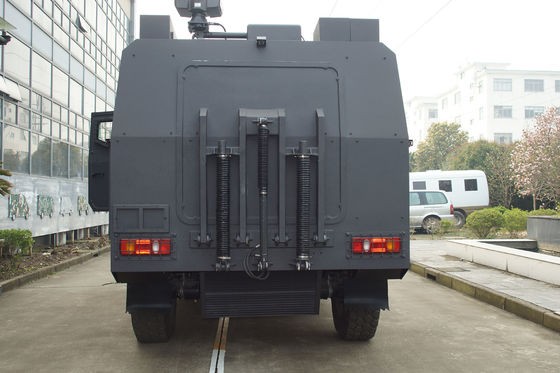

NR3 anti-riot vehicle is based on 4X4 military chassis,6.7L ISDe245-30 Cummins engine, Allision automatic transmission, with a payload up to 2 tons. It can rapidly upgrade to NATO STANAG 3 on the base of STANAG 1 body armor, to withstand 7.62 AP bullet and 60 mm mortars fragments. The floor can be improved to STANAG 2 to resist against 6kg anti-tank mines by additional Anti-Shock upgrading system.

NR3 anti-riot vehicle has excellent urban counter-terrorism capabilities,such as denfense and strike , communication and
command , personnel transport,obstacle removal and other specific operations.
NR3 anti-riot vehicle can be equipped with closed/semi-closed turret, 12.7 heavy machine gun, 38mm anti-riot launcher, obstacle-breaching system, body fire extinguishing system,acoustic dispersion system, communication and command system, 360 rotation and real-time image transmission system as per specific mission requirements.

      Anti Riot Vehicle/Army Anti-Riot Wheeled Police Armoured Truck/4X4 Military Chassis Nr3 Anti Riot Truck

Specification

Traction4×4
Seating Capacity10-12
Gross vehicle weight (kgs)12500
Payload (kgs)2000
Tire365/85R20

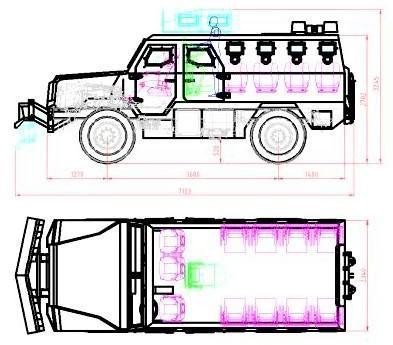

Dimension Lx Wx H (mm)6270x2340x2700
Engine Type6.7L Turbo Diesel
Max Power (Kw/rpm)180/2500
Mas Torque (N.m/rpm)925/1400
Max Road Speed (km/h)105km/h
Max Endurance Mileage (km)1000km
Gradeability60%
Max Roll Angle40%
Ground Clearance (mm)350mm
Max Fording Depth (mm)750mm
Vertical Obstacle Surmounting
Hight (mm)
450mm
Trench Crossing Width (mm)650mm

Layout 3+9Seats :1xDriver, 2xCo-pilots,1xGunner,8xSoldiers
