The SX2150KSA 6×6 Refrigerated Transport Vehicle is a specialized heavy-duty logistics platform designed for food supply transportation, field support, remote operations, and cold chain delivery in challenging environments.
Built on a high-mobility 6×6 off-road chassis, this vehicle combines strong payload capacity, excellent terrain adaptability, and an integrated refrigerated storage system. It provides a reliable solution for transporting temperature-sensitive goods in remote areas, emergency response scenarios, and large-scale logistics operations.
Item No :
SX2150KSAThe SX2150KSA features a robust 6×6 drivetrain designed for demanding road conditions and off-road environments.
Key performance advantages include:
The vehicle is equipped with heavy-duty axles, differential locks, and planetary reduction systems to enhance traction and mobility on uneven terrain, gravel roads, and remote routes.
The vehicle is powered by a WD615.71 turbocharged and intercooled diesel engine, providing reliable performance for heavy-duty transportation.
Engine specifications:
The RT-11509C transmission provides:
This configuration improves driving efficiency under different load and terrain conditions.
Designed for long-term field operation, the vehicle adopts a reinforced chassis structure with reliable mechanical systems.
Features include:
The hydraulic power-assisted steering system provides easier handling during heavy-load transportation.

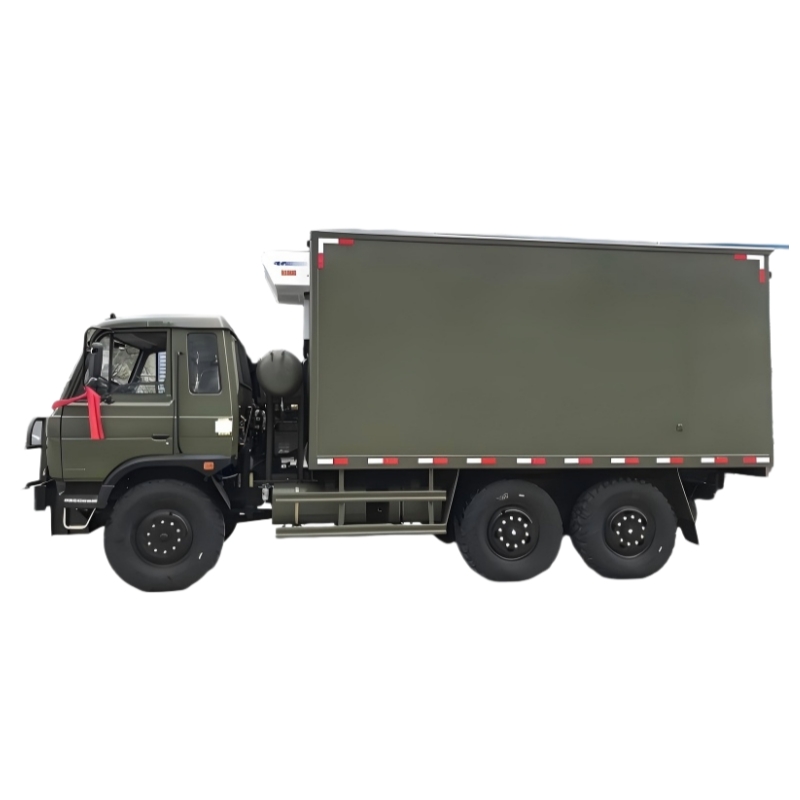

The vehicle is equipped with a large refrigerated display cabinet designed for cold chain transportation and mobile storage applications.
Internal dimensions:
The refrigeration compartment provides sufficient space for transporting food, medical supplies, and other temperature-sensitive materials.
The refrigerated body uses a fully enclosed composite panel structure manufactured through hot-pressed one-piece molding.
Construction features:
This structure provides:
The refrigerated compartment is designed for efficient loading and unloading.
Configuration includes:
The sealing structure helps maintain internal temperature stability during transportation.
The vehicle is equipped with a domestic non-independent refrigeration unit suitable for mobile cold storage operations.
Applications include:
The integrated refrigeration system enables continuous cold chain capability where fixed infrastructure is unavailable.
| Item | Specification |
|---|---|
| Vehicle Model | SX2150KSA |
| Drive Configuration | 6×6 |
| Maximum Speed | 85 km/h |
| Engine | WD615.71 Diesel |
| Engine Output | 260 HP |
| Maximum Torque | 830 N·m |
| Transmission | RT-11509C (9F+1R) |
| Transfer Case | ZQC1200 |
| Wheelbase | 3125 + 1350mm |
| Vehicle Dimensions | 7610 × 2500 × 3000mm |
| Container Dimensions | 4140 × 2326 × 900mm |
| Kerb Weight | 9870kg |
| Payload Capacity | 5000kg (Off-road) |
| Ground Clearance | 335mm |
| Fuel Tank Capacity | 280L |
| Refrigerated Volume | Approx. 22m³ |
| Refrigeration Body | FRP + XPS Composite Panel |
| Refrigeration Unit | Non-independent Type |
The SX2150KSA provides reliable transportation capability for remote areas with limited infrastructure.
Suitable for:
The refrigerated vehicle can support emergency operations requiring mobile storage and transportation.
Applications include:
The insulated refrigerated compartment is designed for:
With its off-road chassis and large storage capacity, the vehicle is suitable for operations requiring mobility and independent logistics capability.
